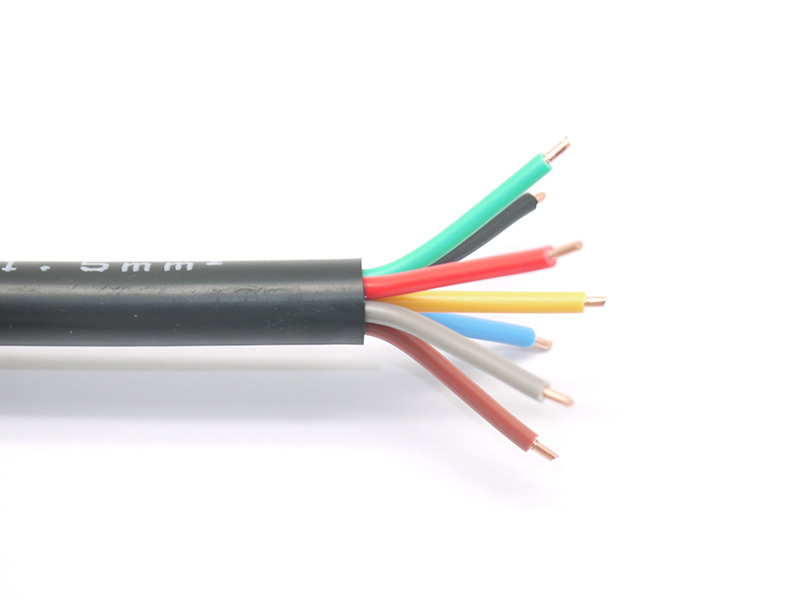

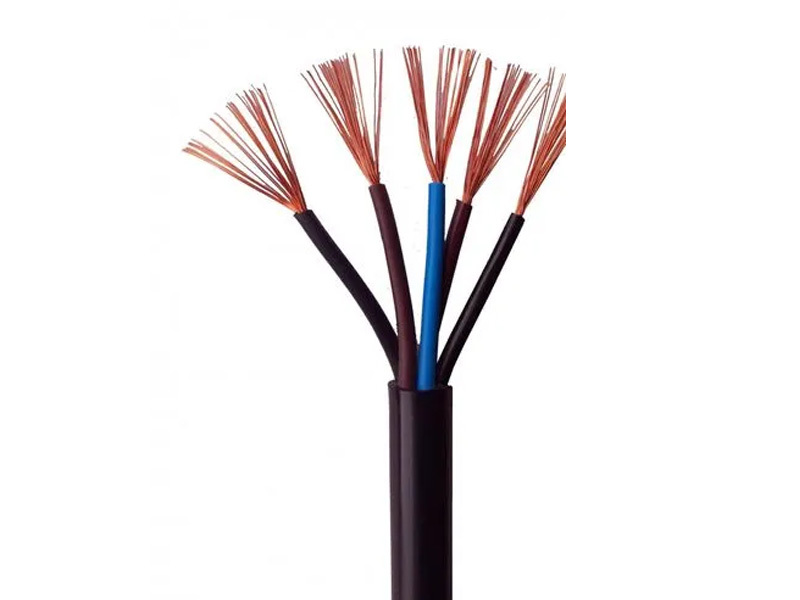

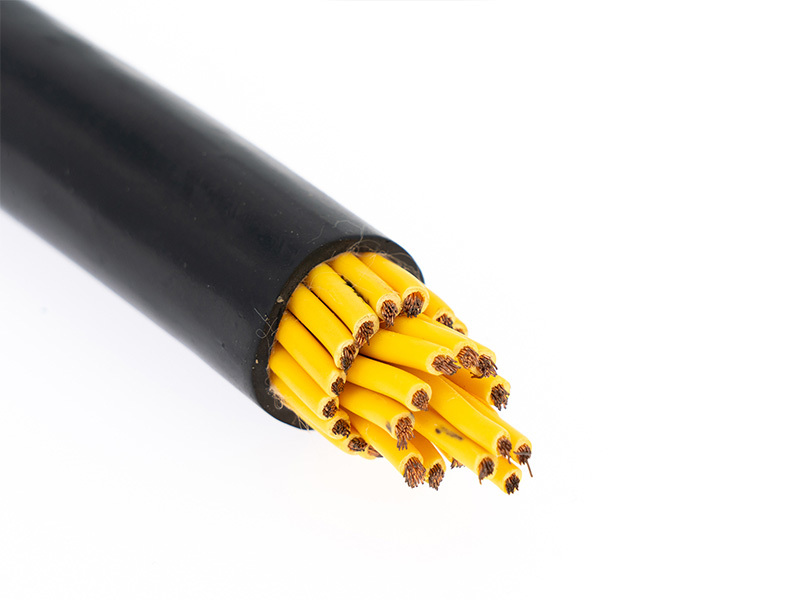

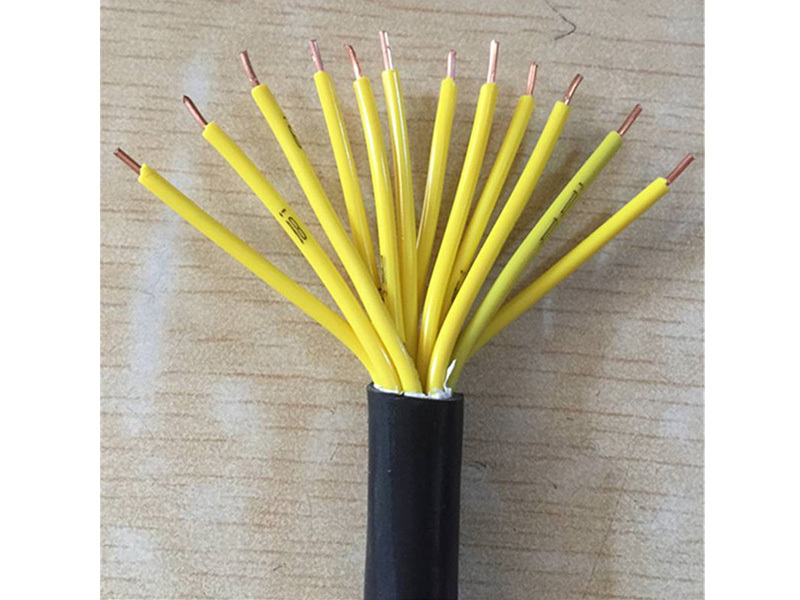

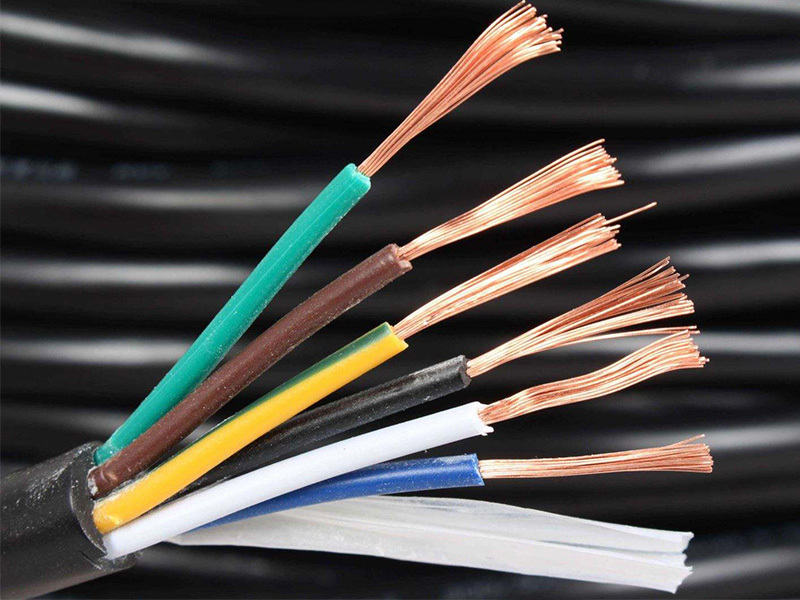

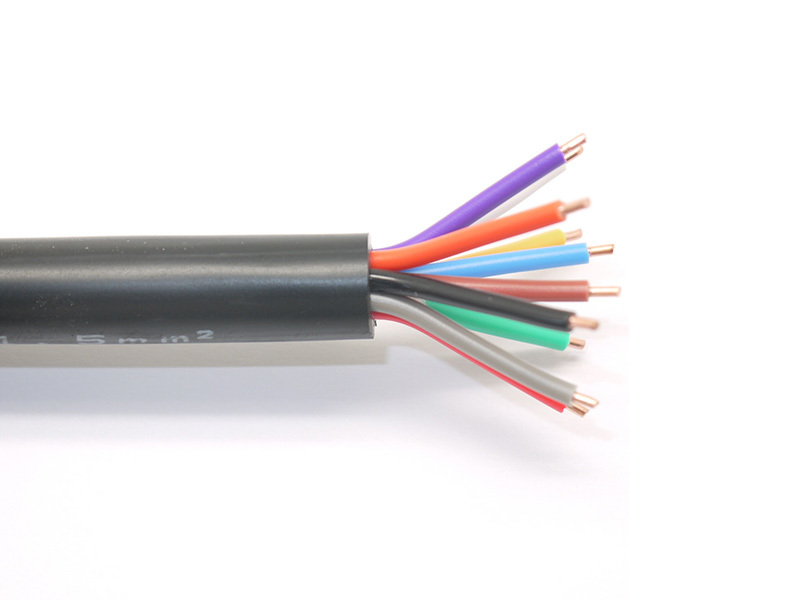

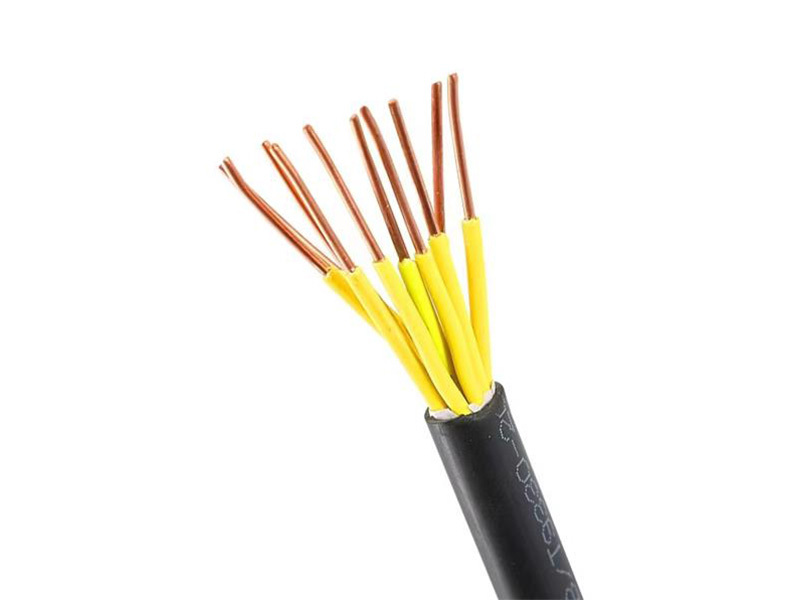

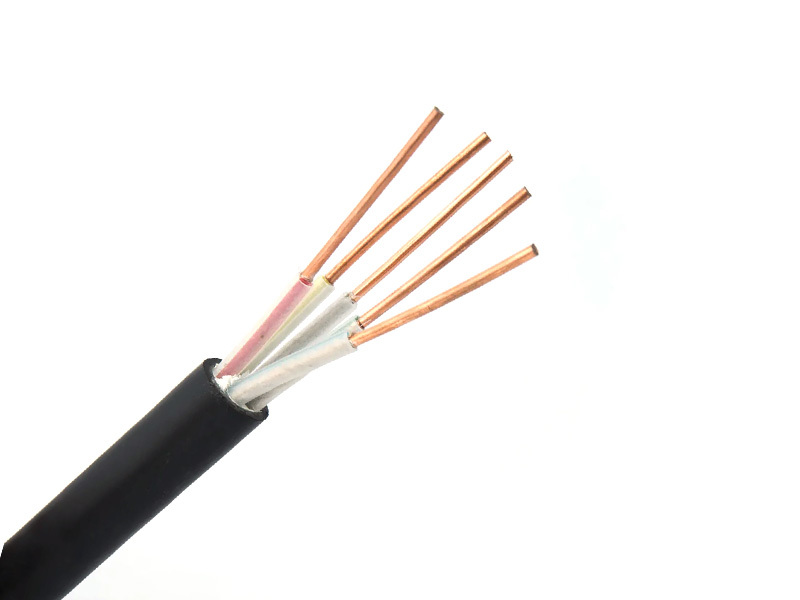

KVV

This product is applicable to AC rated voltage U0/U is the control cable for fixed laying in control, monitoring circuit and protection circuit of (U0/U) 0.6/1kV and below.

key word：

KVV

Category：

Control Cable

Enquiry

APPLICATION

This product is applicable to AC rated voltage U0/U is the control cable for fixed laying in control, monitoring circuit and protection circuit of (U0/U) 0.6/1kV and below.

CONSTRUCTION

● Conductor: Conductor: Copper, class 1, 2, or 5, solid, stranded round or soft conductor

● Insulation: Polyvinyl chloride PVC

● Filler: Non-hygroscopic material

● Binder: Non-hygroscopic material

● Outer sheath: Polyvinyl chloride PVC

MAIN CHARACTERISTICS

Good electrical and mechanical properties. Resistance to abrasion, moisture and sunlight. Adequate resistance to oil and abrasion.

SPECIFICATION

IEC 60228 Conductors of Insulate Cables

IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

IEC 60502-1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	1.8	8.1	74	36
2×0.75	2	0.6	1.8	8.5	89	24.5
2×1	2	0.6	1.8	8.9	98	18.1
2×1.5	2	0.8	1.8	10.3	131	12.1
2×2.5	2	0.8	1.8	11.1	157	7.41
2×4	2	1	1.8	13	217	4.61
2×6	2	1	1.8	14.1	265	3.08
2×10	2	1	1.8	15.9	383	1.83
3×0.5	2	0.6	1.8	8.4	88	36
3×0.75	2	0.6	1.8	8.9	109	24.5
3×1	2	0.6	1.8	9.3	121	18.1
3×1.5	2	0.8	1.8	10.8	154	12.1
3×2.5	2	0.8	1.8	11.7	192	7.41
3×4	2	1	1.8	13.7	272	4.61
3×6	2	1	1.8	14.9	348	3.08
3×10	2	1	1.8	16.8	505	1.83
4×0.5	2	0.6	1.8	9	97	36
4×0.75	2	0.6	1.8	9.5	113	24.5
4×1	2	0.6	1.8	9.9	138	18.1
4×1.5	2	0.8	1.8	11.6	191	12.1
4×2.5	2	0.8	1.8	12.6	240	7.41
4×4	2	1	1.8	14.9	344	4.61
4×6	2	1	1.8	16.2	445	3.08
4×10	2	1	1.8	18.4	664	1.83
5×0.5	2	0.6	1.8	9.6	110	36
5×0.75	2	0.6	1.8	10.1	143	24.5
5×1	2	0.6	1.8	10.6	161	18.1
5×1.5	2	0.8	1.8	12.5	220	12.1
5×2.5	2	0.8	1.8	13.6	285	7.41
5×4	2	1	1.8	16.2	412	4.61
5×6	2	1	1.8	17.6	523	3.08
5×10	2	1	1.8	20.1	799	1.83
6×0.5	2	0.6	1.8	10.2	124	36
6×0.75	2	0.6	1.8	10.8	147	24.5
6×1	2	0.6	1.8	11.4	170	18.1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	kg/km	Ω/km
6×1.5	2	0.8	1.8	13.5	239	12.1
6×2.5	2	0.8	1.8	14.7	311	7.41
6×4	2	1	1.8	17.6	455	4.61
6×6	2	1	1.8	19.2	596	3.08
6×10	2	1	1.8	21.9	868	1.83
7×0.5	2	0.6	1.8	10.2	131	36
7×0.75	2	0.6	1.8	10.8	157	24.5
7×1	2	0.6	1.8	11.4	182	18.1
7×1.5	2	0.8	1.8	13.5	259	12.1
7×2.5	2	0.8	1.8	14.7	341	7.41
7×4	2	1	1.8	17.6	504	4.61
7×6	2	1	1.8	19.2	657	3.08
7×10	2	1	1.8	21.9	962	1.83
8×0.5	2	0.6	1.8	11.1	150	36
8×0.75	2	0.6	1.8	11.9	180	24.5
8×1	2	0.6	1.8	12.5	209	18.1
8×1.5	2	0.8	1.8	14.9	298	12.1
8×2.5	2	0.8	1.8	16.4	392	7.41
8×4	2	1	1.8	19.6	582	4.61
8×6	2	1	1.8	21.5	755	3.08
8×10	2	1	1.8	24.6	1111	1.83
9×0.5	2	0.6	1.8	11.9	167	36
9×0.75	2	0.6	1.8	12.7	203	24.5
9×1	2	0.6	1.8	13.4	235	18.1
9×1.5	2	0.8	1.8	16	334	12.1
9×2.5	2	0.8	1.8	17.6	442	7.41
9×4	2	1	1.8	21.2	655	4.61
9×6	2	1	1.8	23.2	857	3.08
9×10	2	1	1.8	26.7	1261	1.83
10×0.5	2	0.6	1.8	12.3	179	36
10×0.75	2	0.6	1.8	13.1	216	24.5
10×1	2	0.6	1.8	13.9	252	18.1
10×1.5	2	0.8	1.8	16.7	360	12.1
10×2.5	2	0.8	1.8	18.3	478	7.41
10×4	2	1	1.8	22.1	711	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	kg/km	Ω/km
10×6	2	1	1.8	24.3	932	3.08
10×10	2	1	1.8	27.9	1369	1.83
12×0.5	2	0.6	1.8	12.6	195	36
12×0.75	2	0.6	1.8	13.5	238	24.5
12×1	2	0.6	1.8	14.3	280	18.1
12×1.5	2	0.8	1.8	17.2	406	12.1
12×2.5	2	0.8	1.8	18.9	543	7.41
12×4	2	1	1.8	22.8	816	4.61
12×6	2	1	1.8	25.1	1072	3.08
14×0.5	2	0.6	1.8	13.2	217	36
14×0.75	2	0.6	1.8	14.1	266	24.5
14×1	2	0.6	1.8	14.9	314	18.1
14×1.5	2	0.8	1.8	18	459	12.1
14×2.5	2	0.8	1.8	19.8	617	7.41
14×4	2	1	1.8	24	932	4.61
14×6	2	1	1.8	26.3	1230	3.08
16×0.5	2	0.6	1.8	13.8	242	36
16×0.75	2	0.6	1.8	14.8	298	24.5
16×1	2	0.6	1.8	15.6	352	18.1
16×1.5	2	0.8	1.8	18.9	516	12.1
16×2.5	2	0.8	1.8	20.9	696	7.41
16×4	2	1	1.8	25.3	1055	4.61
16×6	2	1	1.8	27.8	1393	3.08
19×0.5	2	0.6	1.8	14.4	271	36
19×0.75	2	0.6	1.8	15.5	336	24.5
19×1	2	0.6	1.8	16.4	400	18.1
19×1.5	2	0.8	1.8	19.9	592	12.1
19×2.5	2	0.8	1.8	22	802	7.41
19×4	2	1	1.8	26.7	1222	4.61
19×6	2	1	1.9	29.9	1643	3.08
20×0.5	2	0.6	1.8	15.1	286	36
20×0.75	2	0.6	1.8	16.2	355	24.5
20×1	2	0.6	1.8	17.2	422	18.1
20×1.5	2	0.8	1.8	20.9	624	12.1
20×2.5	2	0.8	1.8	23.1	845	7.41

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	kg/km	Ω/km
20×4	2	1	1.8	28.2	1288	4.61
20×6	2	1	1.9	31.5	1731	3.08
21×0.5	2	0.6	1.8	15.1	294	36
21×0.75	2	0.6	1.8	16.2	366	24.5
21×1	2	0.6	1.8	17.2	436	18.1
21×1.5	2	0.8	1.8	20.9	647	12.1
21×2.5	2	0.8	1.8	23.1	879	7.41
21×4	2	1	1.8	28.2	1342	4.61
21×6	2	1	1.9	31.5	1804	3.08
22×0.5	2	0.6	1.8	15.8	309	36
22×0.75	2	0.6	1.8	17	385	24.5
22×1	2	0.6	1.8	18	458	18.1
22×1.5	2	0.8	1.8	22	679	12.1
22×2.5	2	0.8	1.8	24.4	922	7.41
22×4	2	1	1.9	30.2	1430	4.61
22×6	2	1	2	33.5	1908	3.08
24×0.5	2	0.6	1.8	16.5	338	36
24×0.75	2	0.6	1.8	17.8	420	24.5
24×1	2	0.6	1.8	18.8	500	18.1
24×1.5	2	0.8	1.8	23	739	12.1
24×2.5	2	0.8	1.8	25.6	1006	7.41
24×4	2	1	1.9	31.7	1559	4.61
24×6	2	1	2	35.1	2084	3.08
27×0.5	2	0.6	1.8	16.8	362	36
27×0.75	2	0.6	1.8	18.1	453	24.5
27×1	2	0.6	1.8	19.2	542	18.1
27×1.5	2	0.8	1.8	23.5	808	12.1
27×2.5	2	0.8	1.8	26.1	1104	7.41
27×4	2	1	2	32.6	1732	4.61
27×6	2	1	2.1	36.1	2314	3.08
30×0.5	2	0.6	1.8	17.4	392	36
30×0.75	2	0.6	1.8	18.7	493	24.5
30×1	2	0.6	1.8	19.9	592	18.1
30×1.5	2	0.8	1.8	24.3	885	12.1
30×2.5	2	0.8	1.8	27	1212	7.41

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	kg/km	Ω/km
30×4	2	1	2	33.8	1903	4.61
30×6	2	1	2.1	37.4	2547	3.08
33×0.5	2	0.6	1.8	18	426	36
33×0.75	2	0.6	1.8	19.4	537	24.5
33×1	2	0.6	1.8	20.6	644	18.1
33×1.5	2	0.8	1.8	25.3	965	12.1
33×2.5	2	0.8	1.8	28.1	1325	7.41
33×4	2	1	2	35.1	2081	4.61
33×6	2	1	2.2	39.1	2804	3.08
37×0.5	2	0.6	1.8	18.6	464	36
37×0.75	2	0.6	1.8	20.1	587	24.5
37×1	2	0.6	1.8	21.3	707	18.1
37×1.5	2	0.8	1.8	26.2	1064	12.1
37×2.5	2	0.8	1.9	29.7	1485	7.41
37×4	2	1	2.1	36.7	2320	4.61
37×6	2	1	2.2	40.6	3108	3.08
44×0.5	2	0.6	1.8	20.7	549	36
44×0.75	2	0.6	1.8	22.4	694	24.5
44×1	2	0.6	1.8	23.8	836	18.1
44×1.5	2	0.8	1.9	29.9	1280	12.1
44×2.5	2	0.8	2	33.5	1774	7.41
44×4	2	1	2.2	41.4	2766	4.61
44×6	2	1	2.4	46.1	3728	3.08
48×0.5	2	0.6	1.8	21	581	36
48×0.75	2	0.6	1.8	22.7	739	24.5
48×1	2	0.6	1.8	24.2	893	18.1
48×1.5	2	0.8	1.9	30.4	1372	12.1
48×2.5	2	0.8	2	34	1906	7.41
48×4	2	1	2.3	42.3	2998	4.61
48×6	2	1	2.4	46.9	4017	3.08
52×0.5	2	0.6	1.8	21.6	621	36
52×0.75	2	0.6	1.8	23.3	791	24.5
52×1	2	0.6	1.8	24.8	957	18.1
52×1.5	2	0.8	1.9	31.2	1473	12.1
52×2.5	2	0.8	2	35	2048	7.41
52×4	2	1	2.3	43.5	3225	4.61
52×6	2	1	2.4	48.2	4326	3.08

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	kg/km	Ω/km
52×6	2	1	2.4	48.2	4326	3.08
61×0.5	2	0.6	1.8	22.8	711	36
61×0.75	2	0.6	1.8	24.7	909	24.5
61×1	2	0.6	1.8	26.3	1102	18.1
61×1.5	2	0.8	2	33.3	1714	12.1
61×2.5	2	0.8	2.1	37.3	2386	7.41
61×4	2	1	2.4	46.4	3756	4.61
61×6	2	1	2.6	51.6	5065	3.08
