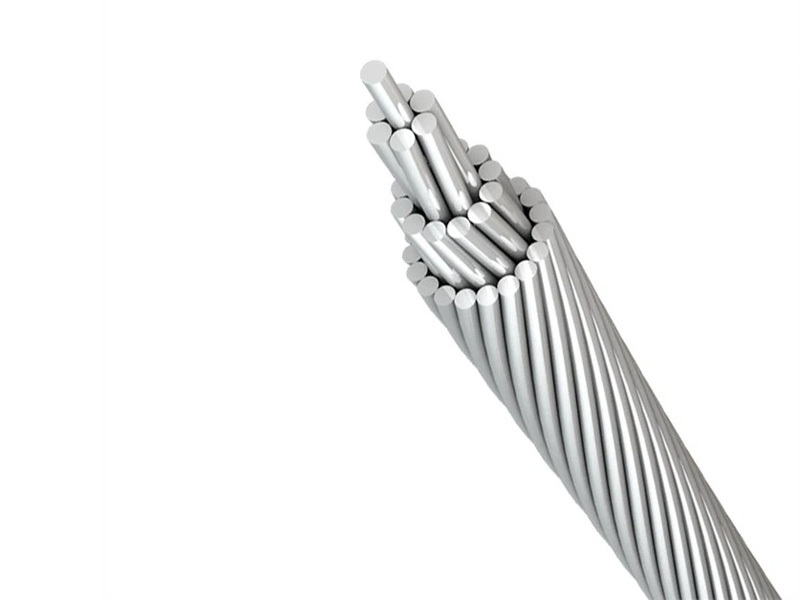

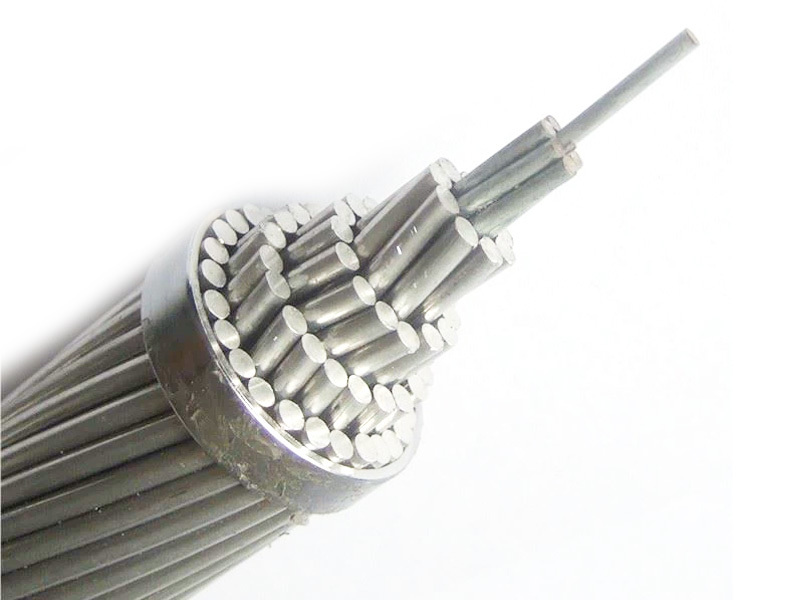

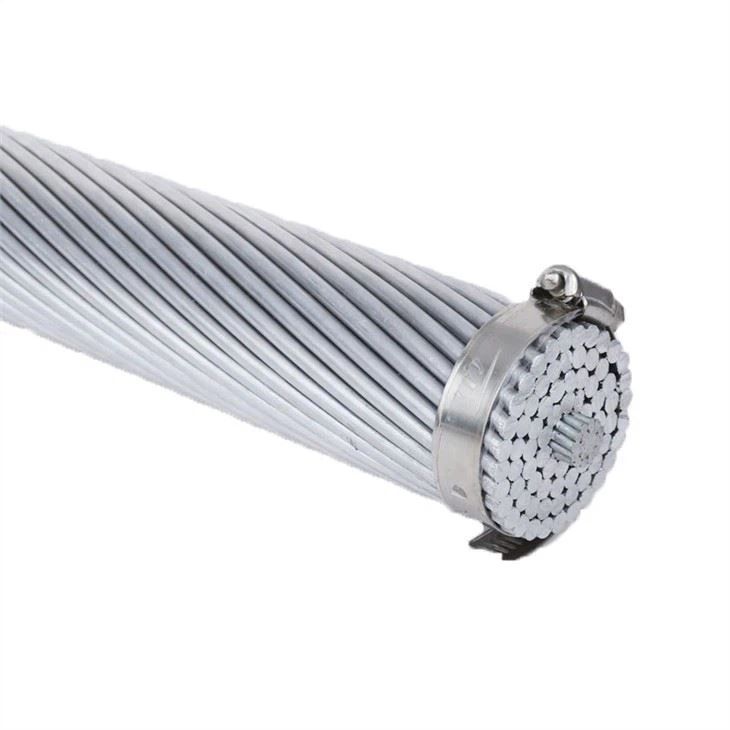

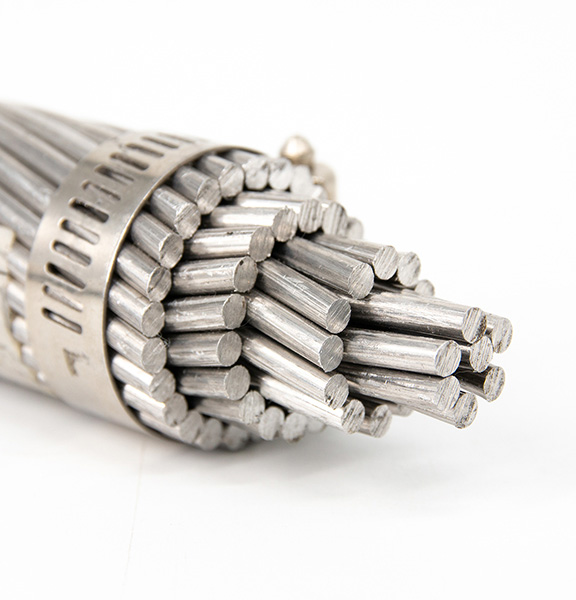

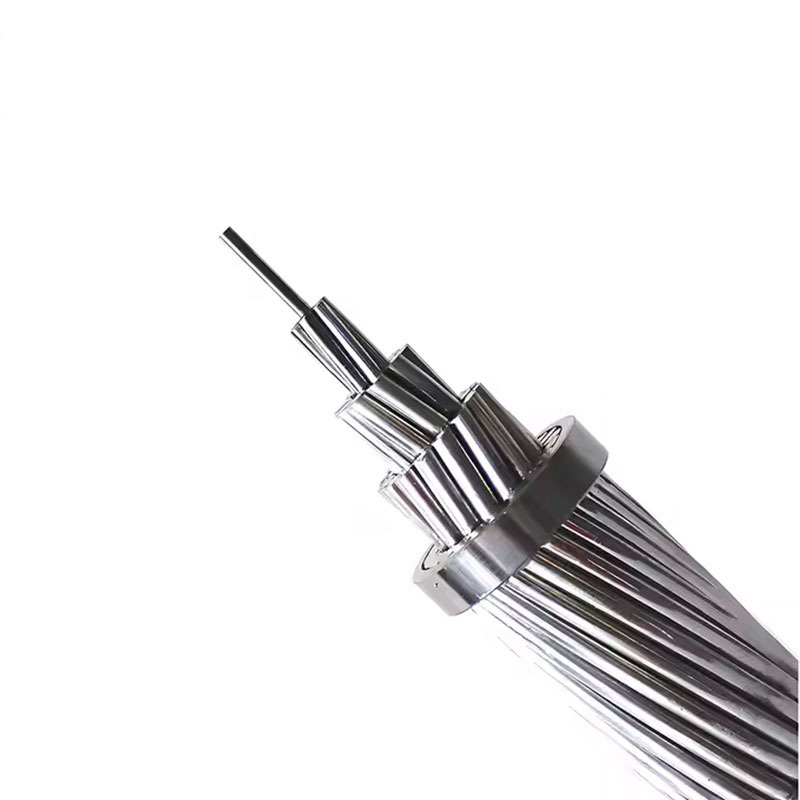

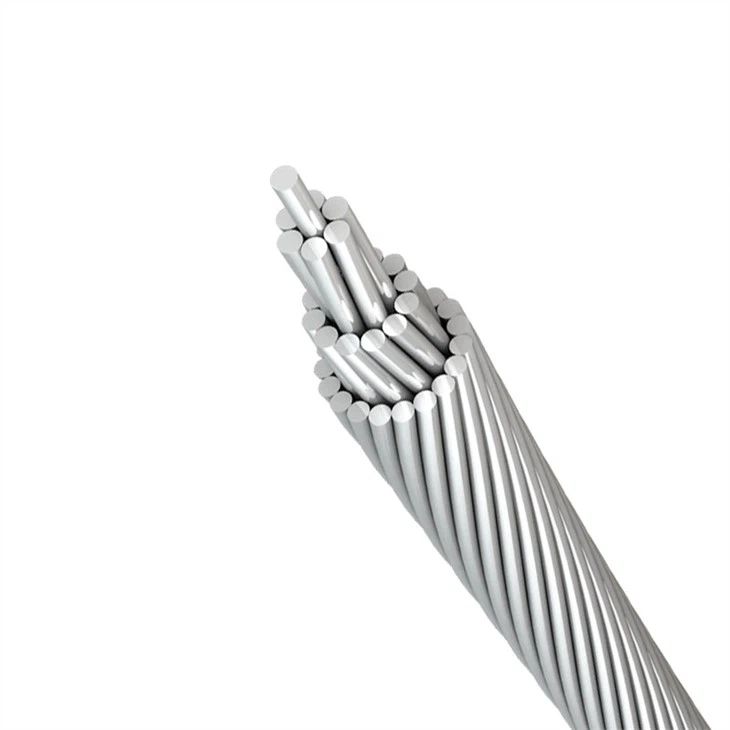

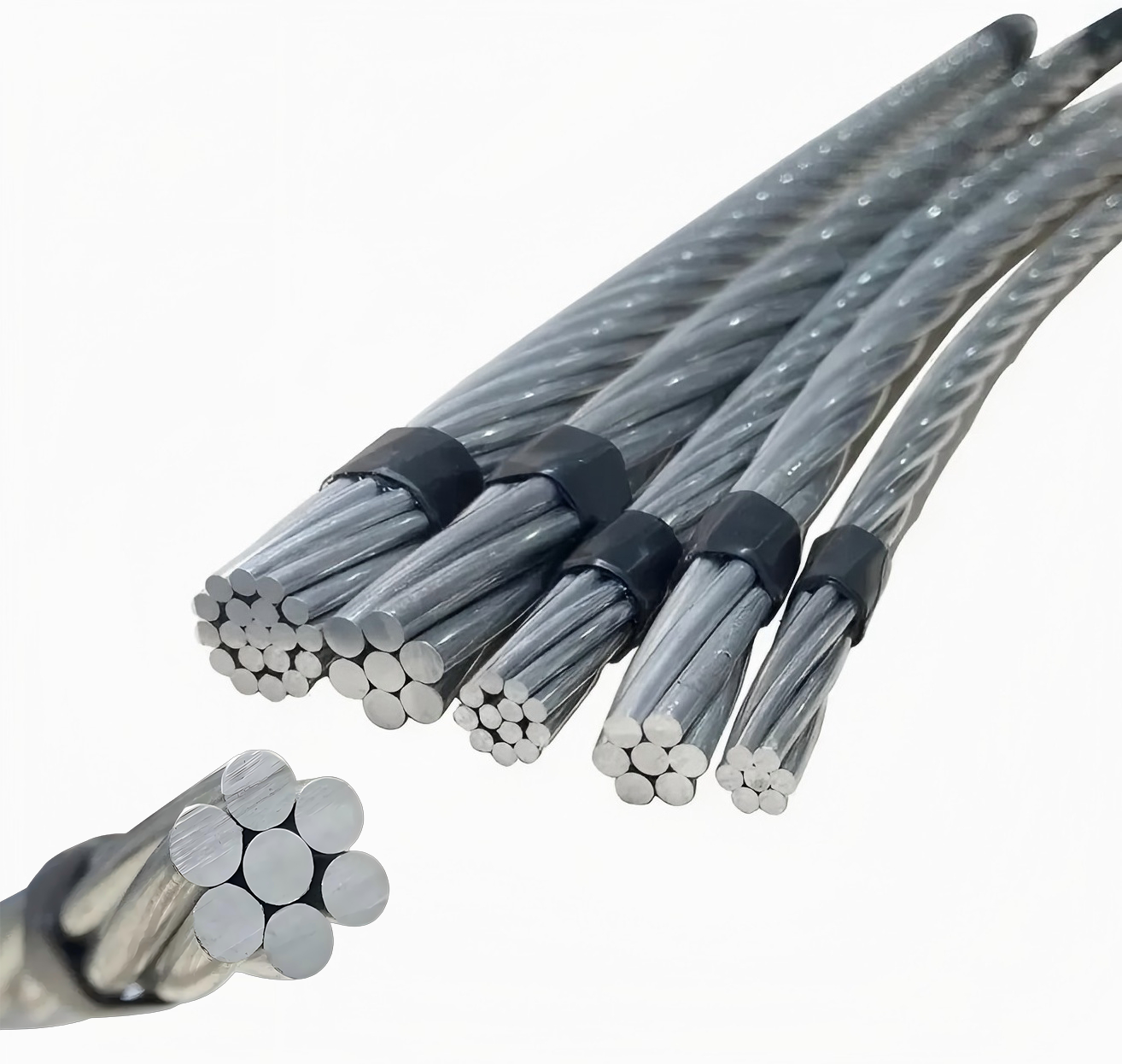

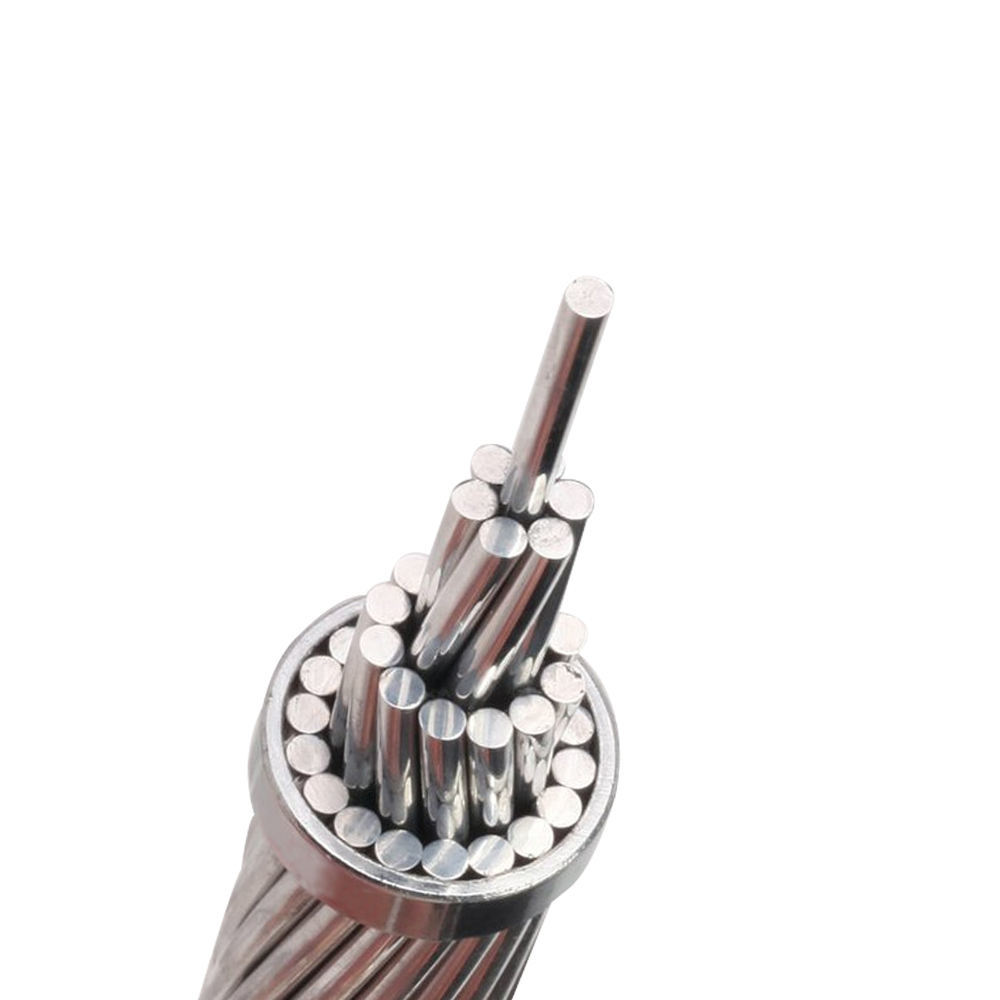

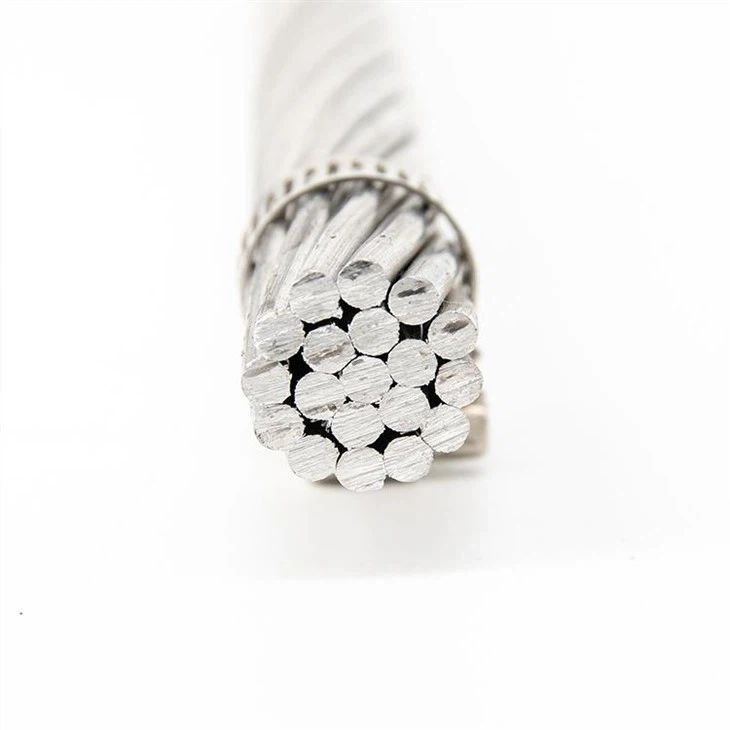

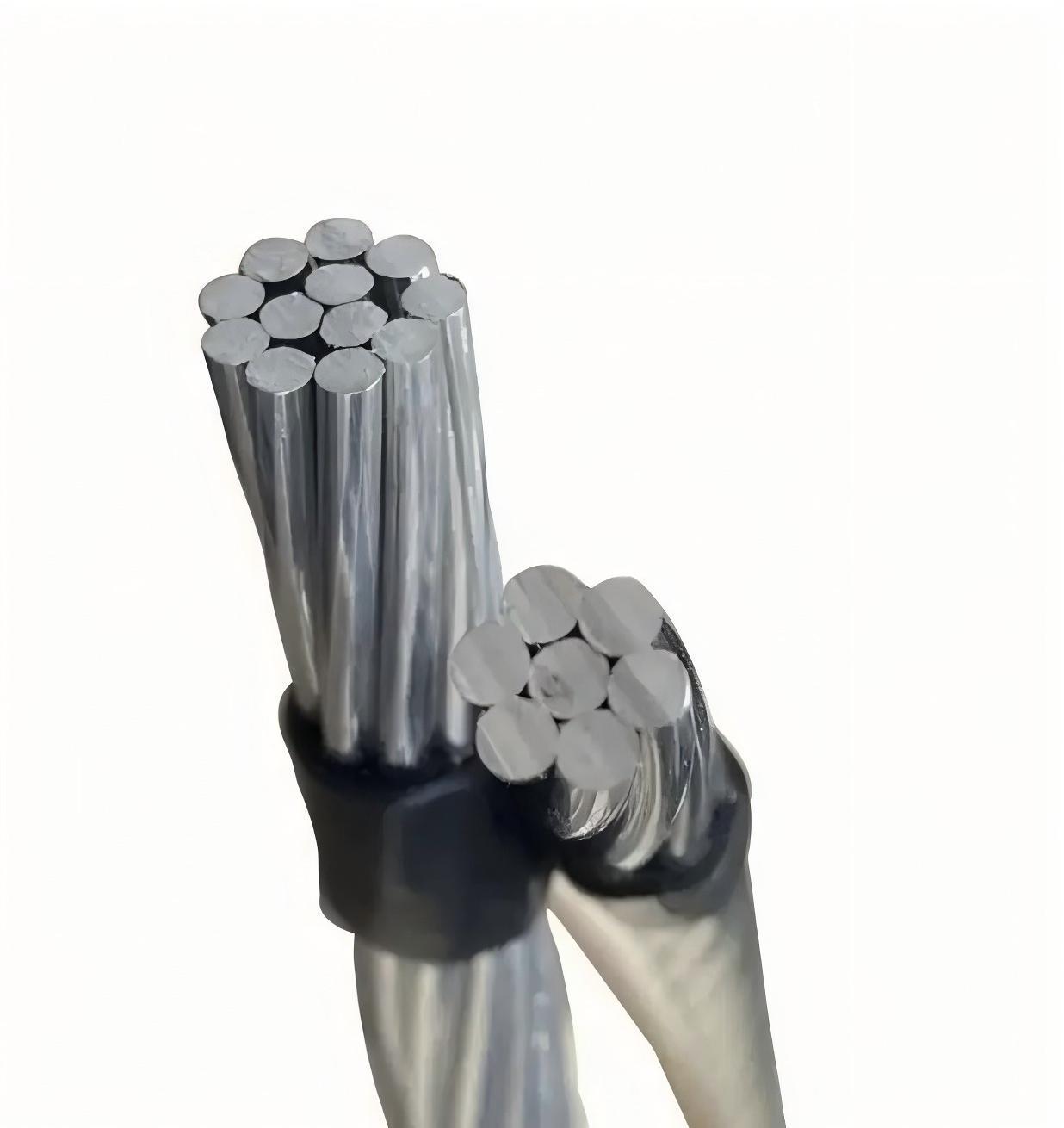

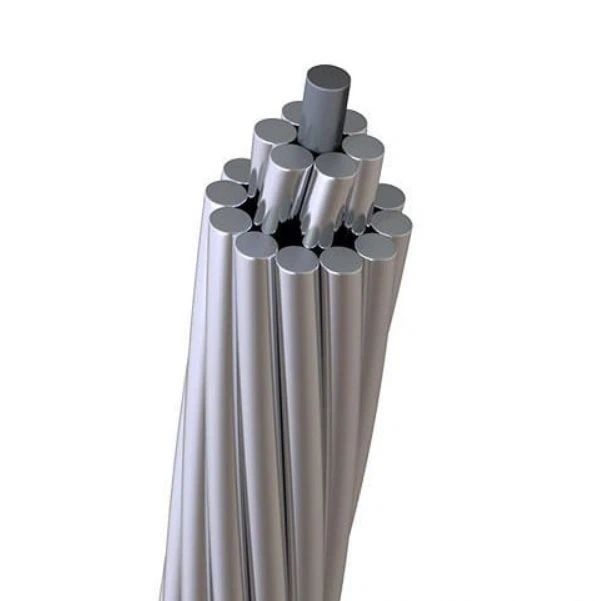

AAC

AAC is used mainly in urban areas where the spacing is short and the supports are close. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. AAC is also used extensively in coastal regions because it has a high degree of corrosion resistance.

key word：

AAC

Category：

Bare Conductor

Enquiry
Related Products

Product Description

APPLICATION

AAC is used mainly in urban areas where the spacing is short and the supports are close. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. AAC is also used extensively in coastal regions because it has a high degree of corrosion resistance.

DESCRIPTION

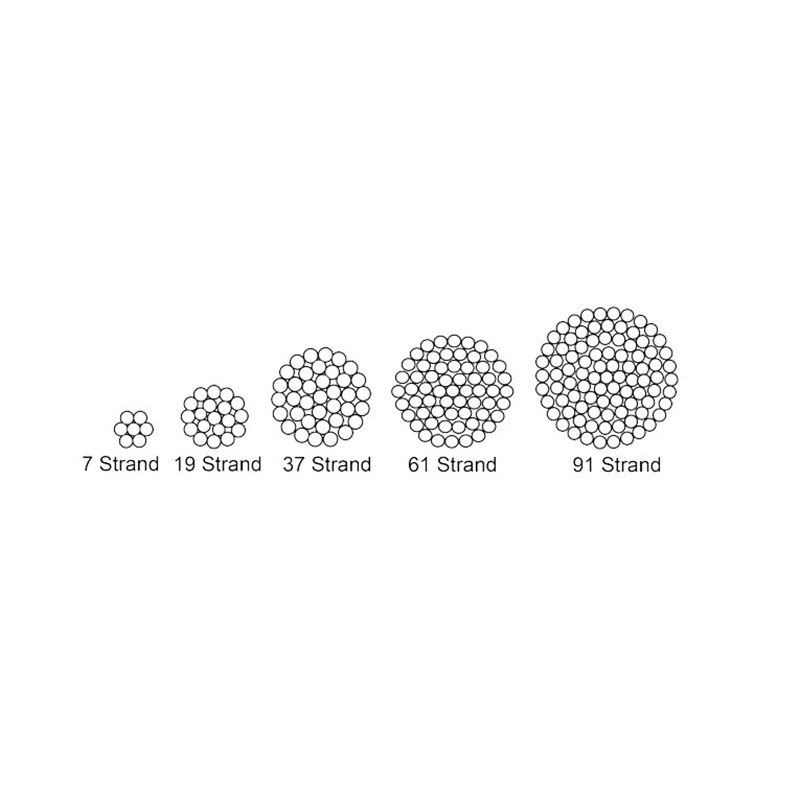

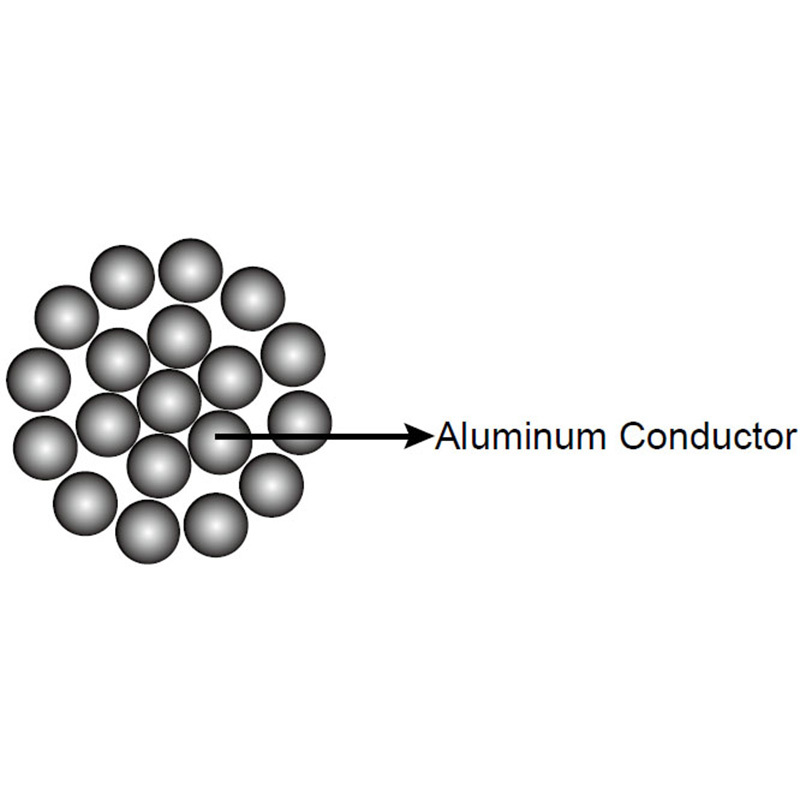

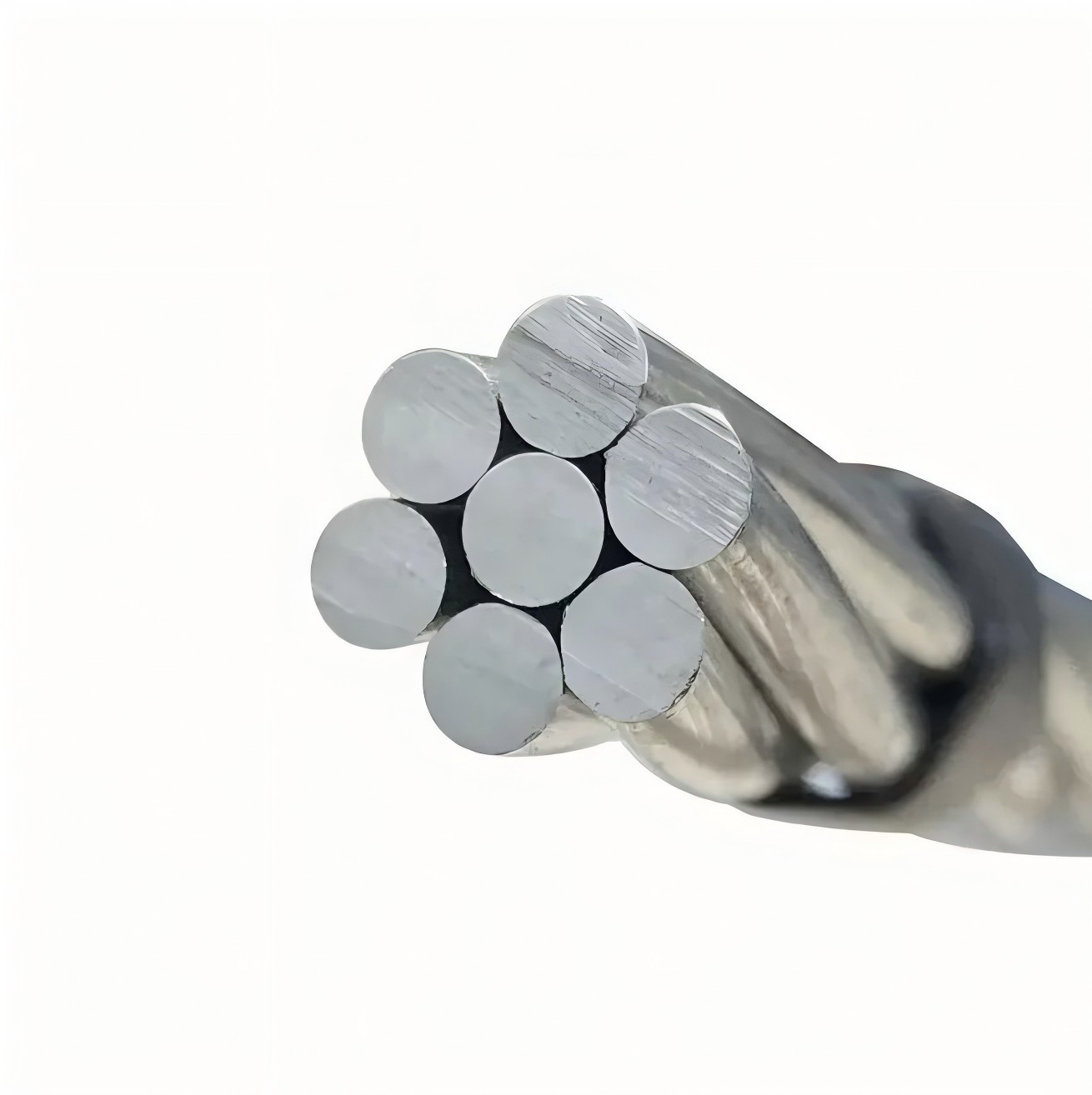

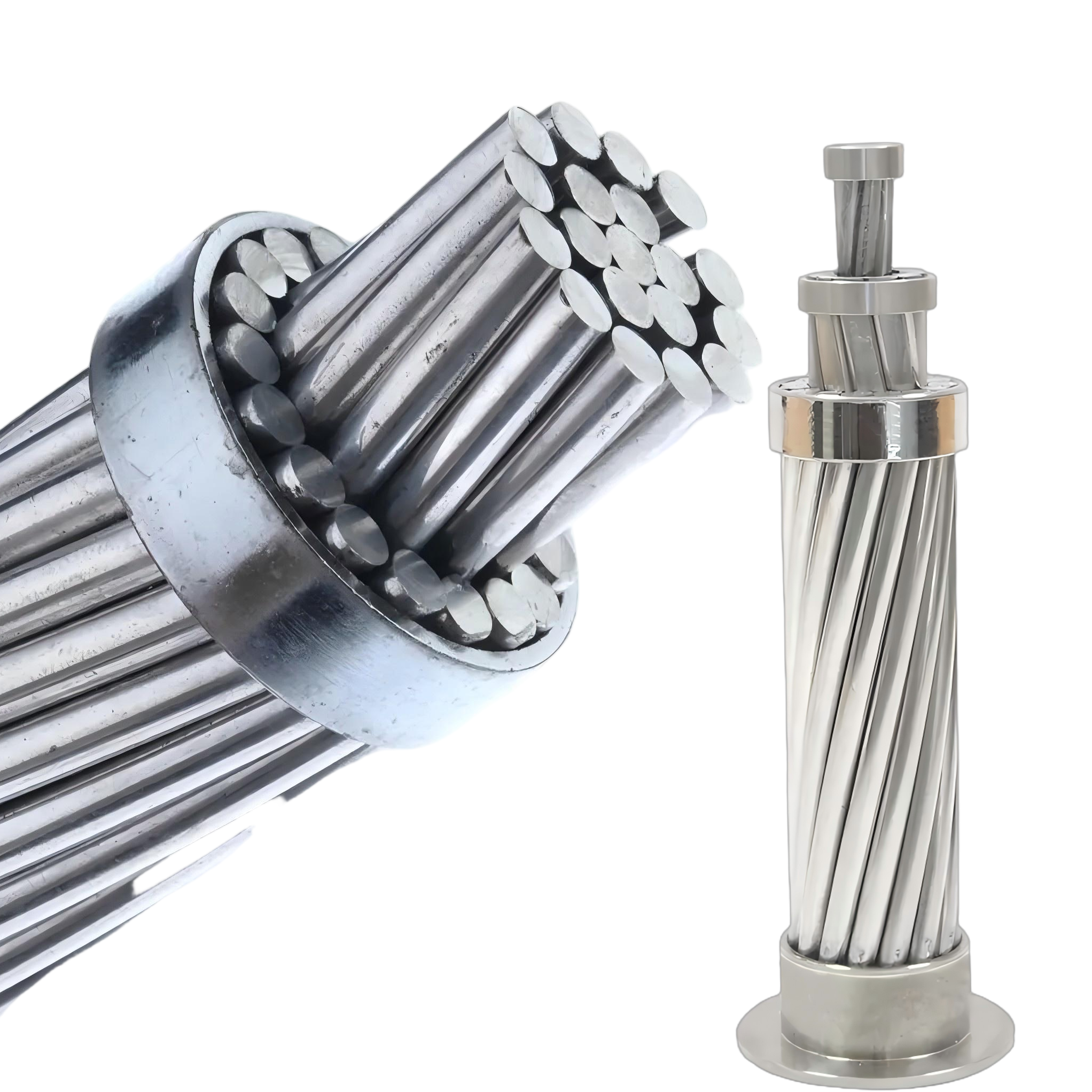

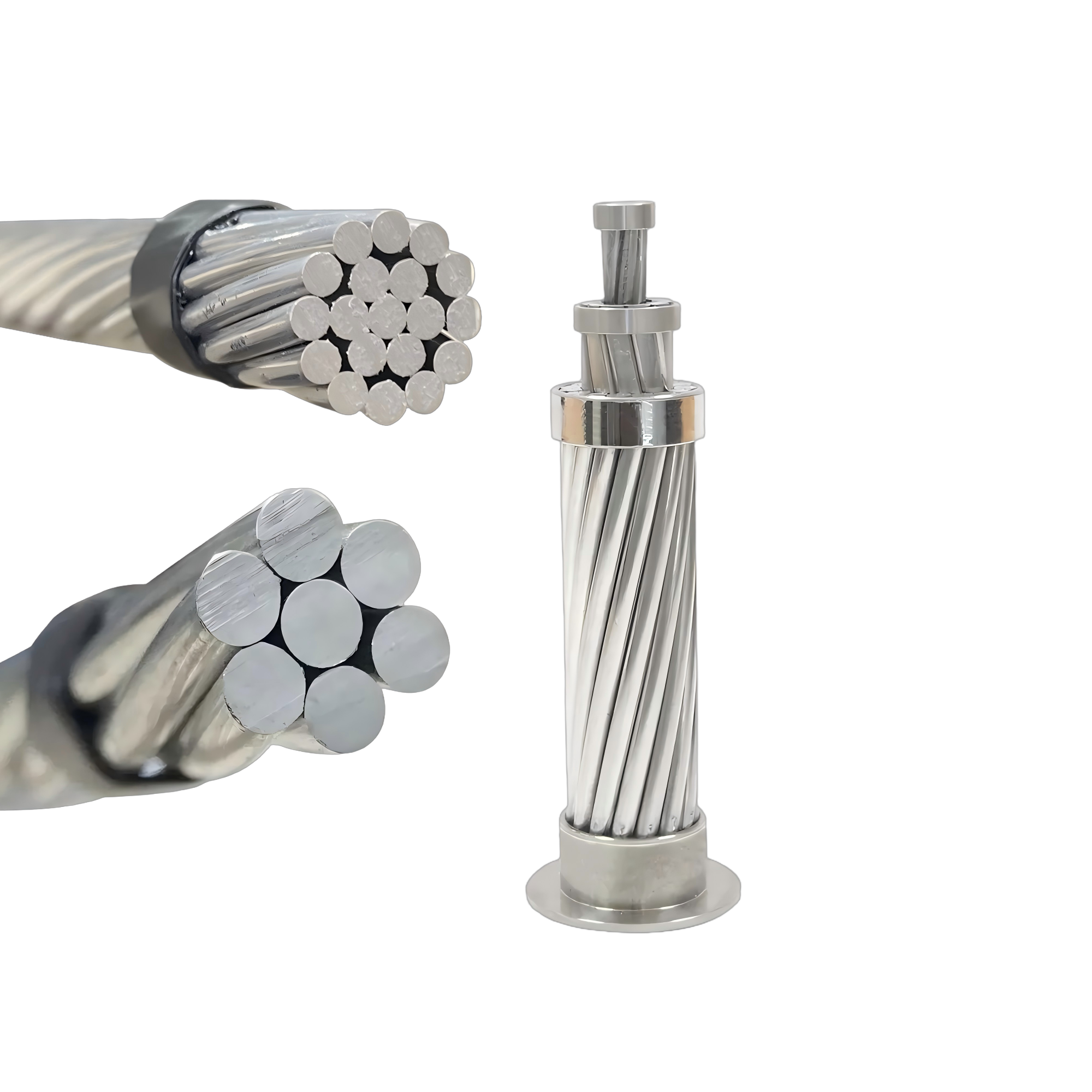

Concentric lay stranded Aluminium Conductors (AAC) are made out of Hard-Drawn aluminum wires.

STANDARDS

• IEC 61089   • ASTM B 231   • BS EN 50182   • AS 1531   • GB/T 1179

IEC 61089

No.of Diameter Linear Rated D.C.
Wires Wire Cond. Mass Strength Resistance
  mm mm kg/km kN Ω/km
7 1.35 4.05 27.4 1.95 2.8633
7 1.71 5.12 43.8 3.04 1.7896
7 2.13 6.4 68.4 4.5 1.1453
7 2.7 8.09 109.4 6.8 0.7158
7 3.39 10.2 172.3 10.39 0.4545
19 2.59 12.9 274.8 17 0.2877
19 2.89 14.5 343.6 21.25 0.2302
19 3.27 16.4 439.8 26.4 0.1798
19 3.66 18.3 549.7 32 0.1439
19 4.09 20.5 687.1 40 0.1151
37 3.29 23 867.9 51.97 0.0916
37 3.71 26 1102 64 0.0721
37 3.94 27.5 1239.8 72 0.0641
37 4.15 29 1377.6 80 0.0577
37 4.39 30.7 1542.9 89.6 0.0515
61 3.63 32.6 1738.3 100.8 0.0458
61 3.85 34.6 1959.1 113.6 0.0407
61 4.09 36.8 2207.4 128 0.0361
61 4.33 39 2483.3 144 0.0321
61 4.57 41.1 2759.2 160 0.0289
91 3.96 43.5 3093.5 179.2 0.0258
91 4.18 46 3452.6 200 0.0231
91 4.43 48.7 3866.9 224 0.0207
91 4.58 50.4 4143.1 240 0.0193



ASTM B 231

Code Name Area Number of Wires Diameter of Wire Approx. Overall Diameter Unit Weight Nominal Breaking Load Nominal DC Resistance at 20℃
Nominal Actual
AWG or MCM mm2 No. mm mm kg/km kN ohm/km
PEACHBELL 6 13.3 7 1.56 4.68 36.6 2.53 2.1606
ROSE 4 21.1 7 1.96 5.88 58.2 3.91 1.3619
IRIS 2 33.6 7 2.47 7.41 92.6 5.99 0.855
PANSY 1 42.4 7 2.78 8.34 116.6 7.3 0.6779
POPPY 1/0 53.5 7 3.12 9.36 147.2 8.84 0.5373
ASTER 2/0 67.4 7 3.5 10.5 185.7 11.1 0.4262
PHLOX 3/0 85 7 3.93 11.79 233.9 13.5 0.3379
OXLIP 4/0 107.2 7 4.42 13.26 295.2 17 0.268
VALERIAN 250 126.7 19 2.91 14.55 348.6 20.7 0.2268
SNEEZEWORT 250 126.7 7 4.8 14.4 348.8 20.1 0.2268
LAUREL 266.8 135.2 19 3.01 15.05 372.2 22.1 0.2126
DAISY 266.8 135.2 7 4.96 14.88 372.3 21.4 0.2126
PEONY 300 152 19 3.19 15.95 418.3 24.3 0.189
TULIP 336.4 170.5 19 3.38 16.9 469.5 27.3 0.1686
DAFFODIL 350 177.3 19 3.45 17.25 487.9 28.4 0.1621
CANNA 397.5 201.4 19 3.67 18.35 554.9 31.6 0.1427
GOLDENTUFT 450 228 19 3.91 19.55 627.6 35 0.126
SYRINGA 477 241.7 37 2.88 20.16 664.8 38.6 0.1189
COSMOS 477 241.7 19 4.02 20.1 664.8 37 0.1189
HYACINTH 500 253.3 37 2.95 20.65 696.8 40.5 0.1134
ZINNIA 500 253.3 19 4.12 20.6 697.1 38.9 0.1134
MISTLETOE 556.5 282 37 3.12 21.84 775.7 44.3 0.1019
DAHLIA 556.5 282 19 4.35 21.75 775.8 43.3 0.1019
MEADOWSWEET 600 304 37 3.23 22.61 836.3 47.5 0.0945
ORCHID 636 322.3 37 3.33 23.31 886.9 50.4 0.0892
HEUCHERA 650 329.4 37 3.37 23.59 907.4 51.7 0.0872
FLAG 700 354.7 61 2.72 24.48 975.8 57.1 0.081
VERBENA 700 354.7 37 3.49 24.43 975.7 55.4 0.081
NASTURTIUM 715.5 362.6 61 2.75 24.75 998.5 58.4 0.0793
VIOLET 715.5 362.6 37 3.53 24.71 998.5 56.7 0.0793



Code Name Area Number of Wires Diameter of Wire Approx. Overall Diameter Unit Weight Nominal Breaking Load Nominal DC Resistance at 20℃
Nominal Actual
AWG or MCM mm2 No. mm mm kg/km kN ohm/km
CATTAIL 750 380 61 2.82 25.38 1046 60.3 0.0756
PETUNIA 750 380 37 3.62 25.34 1046 58.6 0.0756
LILAC 795 402.8 61 2.9 26.1 1110 63.8 0.0713
ARBUTUS 795 402.8 37 3.72 26.04 1109 61.8 0.0713
SNAPDRAGON 900 456 61 3.09 27.81 1256 70.8 0.063
COCKSCOMB 900 456 37 3.96 27.72 1256 68.4 0.063
GOLDENROD 954 483.4 61 3.18 28.62 1331 75 0.0594
MAGNOLIA 954 483.4 37 4.08 28.56 1331 72.6 0.0594
CAMELLIA 1000 506.7 61 3.25 29.25 1394 78.3 0.0567
HAWKWEED 1000 506.7 37 4.18 29.26 1395 76.2 0.0567
LARKSPUR 1033.5 523.7 61 3.31 29.79 1442 81.3 0.0549
BLUEBELL 1033.5 523.7 37 4.25 29.75 1441 78.8 0.0549
MARIGOLD 1113 564 61 3.43 30.87 1553 87.3 0.0509
HAWTHORN 1192.5 604.2 61 3.55 31.95 1662 93.5 0.0476
NARCISSUS 1272 644.5 61 3.67 33.03 1774 98.1 0.0446
COLUMBINE 1351 684.6 61 3.78 34.02 1884 104 0.042
CARNATION 1431 725.1 61 3.89 35.01 1997 108 0.0396
GLADIOLUS 1510.5 765.4 61 4 36 2108 114 0.0375
COREOPSIS 1590 805.7 61 4.1 36.9 2216 120 0.0357
JESSAMINE 1750 886.7 61 4.3 38.7 2442 132 0.0324
COWSLIP 2000 1013 91 3.77 41.47 2787 153 0.0284
SAGEBRUSH 2250 1140 91 3.99 43.89 3166 167 0.0255
LUPINE 2500 1267 91 4.21 46.31 3519 186 0.0229
BITTERROOT 2750 1393 91 4.42 48.62 3872 205 0.0208
TRILLIUM 3000 1520 127 3.9 50.7 4226 223 0.0191
BLUEBONNET 3500 1773 127 4.22 54.86 4977 261 0.0165





BS EN 50182

BS EN 50182 (Germany)

Code Old Code Area No. of Wires Diameter Mass per Unit Length Rated Strength DC
Wire Cond. Resistance
mm2 mm mm kg/km kN Ω/km
16-AL1 16 15.9 7 1.7 5.1 43.4 3.02 1.7986
24-AL1 25 24.2 7 2.1 6.3 66.3 4.36 1.1787
34-AL1 35 34.4 7 2.5 7.5 93.9 6.01 0.8317
49-AL1 50 49.5 7 3 9 135.2 8.41 0.5776
48-AL1 50 48.3 19 1.8 9 132.9 8.94 0.5944
66-AL1 70 65.8 19 2.1 10.5 180.9 11.85 0.4367
93-AL1 95 93.3 19 2.5 12.5 256.3 16.32 0.3081
117-AL1 120 117 19 2.8 14 321.5 19.89 0.2456
147-AL1 150 147.1 37 2.25 15.8 405.7 26.48 0.196
182-AL1 185 181.6 37 2.5 17.5 500.9 31.78 0.1588
243-AL1 240 242.5 61 2.25 20.3 671.1 43.66 0.1193
299-AL1 300 299.4 61 2.5 22.5 828.5 52.4 0.0966
400-AL1 400 400.1 61 2.89 26 1107.1 68.02 0.0723
500-AL1 500 499.8 61 3.23 29.1 1382.9 82.47 0.0579
626-AL1 625 626.2 91 2.96 32.6 1739.7 106.45 0.0464
802-AL1 800 802.1 91 3.35 36.9 2228.3 132.34 0.0362
1000-AL1 1000 999.7 91 3.74 41.1 2777.3 159.95 0.0291



BS EN 50182 ( United Kingdom)

Code Old Area   Diameter Mass per Rated DC
code No.of Wire Cond. Unit length Strength Resistance
  mm2 wires mm mm kg/km kN Ω/km
23-AL1 MIDGE 23.3 7 2.06 6.18 63.8 4.2 1.2249
27-AL1 GNAT 26.9 7 2.21 6.63 73.4 4.83 1.0643
37-AL1 MOSQUITO 36.9 7 2.59 7.77 100.8 6.27 0.7749
43-AL1 LADYBIRD 42.8 7 2.79 8.37 117 7.28 0.6678
53-AL1 ANT 52.8 7 3.1 9.3 144.4 8.72 0.5409
64-AL1 FLY 63.6 7 3.4 10.2 173.7 10.49 0.4497
74-AL1 BLUEBOTTLE 73.6 7 3.66 11 201.3 11.78 0.388
79-AL1 EARWIG 78.6 7 3.78 11.3 214.7 12.57 0.3638
84-AL1 GRASSHOPPER 84.1 7 3.91 11.7 229.7 13.45 0.34
96-AL1 CLEGG 95.6 7 4.17 12.5 261.3 15.3 0.2989
106-AL1 WASP 106 7 4.39 13.2 289.6 16.95 0.2697
106-AL1 BEETLE 106.4 19 2.67 13.4 292.4 18.08 0.2701
132-AL1 BEE 132 7 4.9 14.7 360.8 21.12 0.2165
158-AL1 HORNET 157.6 19 3.25 16.3 433.2 26.01 0.1823
186-AL1 CATERPILLAR 185.9 19 3.53 17.7 511.1 29.75 0.1546
213-AL1 CHAFER 213.2 19 3.78 18.9 586 34.12 0.1348
238-AL1 SPIDER 237.6 19 3.99 20 652.9 38.01 0.121
266-AL1 COCKROACH 265.7 19 4.22 21.1 730.4 42.52 0.1081
323-AL1 BUTTERFLY 322.7 19 4.65 23.3 886.8 51.63 0.0891
373-AL1 MOTH 373.1 19 5 25 1025.3 59.69 0.077
372-AL1 DRONE 372.4 37 3.58 25.1 1027.1 59.59 0.0774
415-AL1 CENTIPEDE 415.2 37 3.78 26.5 1145.1 66.43 0.0695
486-AL1 MAYBUG 486.1 37 4.09 28.6 1340.6 77.78 0.0593
530-AL1 SCORPION 529.8 37 4.27 29.9 1461.2 84.77 0.0544
628-AL1 CICADA 628.3 37 4.65 32.6 1732.9 100.54 0.0459



AS 1531

Code Name Stranding Approx. Cross- Approx. Mass Calculated Equiv. D.C.
and Wire Overall Diameter sectional Breaking Aluminium Area Resistance  at 20℃
Diameter   Area Load
      (CBL)
mm mm mm2 kg/km KN mm2 Ω/km
Leo 7/2.50 7.5 34.36 94.3 5.71 33.9 0.833
Leonids 7/2.75 8.25 41.58 113 6.72 41.1 0.689
Libra 7/3.00 9 49.48 135 7.98 48.9 0.579
Mars 7/3.75 11.3 77.28 211 11.8 76.3 0.37
Mercury 7/4.50 13.5 111.3 304 16.9 110 0.258
Moon 7/4.75 14.3 124 339 18.9 122 0.232
Neptune 19/3.25 16.3 157.6 433 24.7 154 0.183
Orion 19/3.50 17.5 182.8 503 28.7 180 0.157
Pluto 19/3.75 18.8 209.8 576 31.9 206 0.137
Saturn 37/3.00 21 261.6 721 42.2 256 0.11
Sirius 37/3.25 22.8 307 845 48.2 301 0.094
Taurus 19/4.75 23.8 336.7 924 51.3 331 0.0857
Triton 37/3.75 26.3 408.5 1120 62.2 400 0.0706
Uranus 61/3.25 29.3 506.1 1400 75.2 495 0.0572
Ursula 61/3.50 31.5 586.9 1620 87.3 574 0.0493
Venus 61/3.75 33.8 673.4 1860 97.2 659 0.0429



GBT 1179

Code Area No. of Wires Diameter Linear Mass Rated Strength D.C. Resistance
Number Wire Cond. at 20℃
  mm2 mm mm kg/km kN Ω/km
10 10 7 1.35 4.05 27.4 1.95 2.8578
16 16.1 7 1.71 5.13 44 3.05 1.7812
25 24.9 7 2.13 6.39 68.3 4.49 1.148
35 34.4 7 2.5 7.5 94.1 6.01 0.8333
40 40.1 7 2.7 8.1 109.8 6.81 0.7144
50 49.5 7 3 9 135.5 8.41 0.5787
63 63.2 7 3.39 10.2 173 10.42 0.4532
70 71.3 7 3.6 10.8 195.1 11.4 0.4019
95 95.1 7 4.16 12.5 260.5 15.22 0.301
100 100 19 2.59 13 275.4 17.02 0.2874
120 121 19 2.85 14.3 333.5 20.61 0.2374
125 125 19 2.89 14.5 343 21.19 0.2309
150 148 19 3.15 15.8 407.4 24.43 0.1943
160 160 19 3.27 16.4 439.1 26.33 0.1803
185 183 19 3.5 17.5 503 30.16 0.1574
200 200 19 3.66 18.3 550 31.98 0.1439
210 210 19 3.75 18.8 577.4 33.58 0.1371
240 239 19 4 20 657 38.2 0.1205
250 250 19 4.09 20.5 686.9 39.94 0.1153
300 298 37 3.2 22.4 820.7 49.1 0.0969
315 315 37 3.29 23 867.6 51.9 0.0917
400 400 37 3.71 26 1103.2 64 0.0721
450 451 37 3.94 27.6 1244.2 72.18 0.0639
500 503 37 4.16 29.1 1387.1 80.46 0.0573
560 560 37 4.39 30.7 1544.7 89.61 0.0515
630 631 61 3.63 32.7 1743.8 101 0.0458
710 710 61 3.85 34.7 1961.5 113.6 0.0407
800 801 61 4.09 36.8 2213.7 128.2 0.036
900 898 61 4.33 39 2481.1 143.7 0.0322
1000 1001 61 4.57 41.1 2763.8 160.1 0.0289
1120 1121 91 3.96 43.6 3099.2 170.4 0.0258
1250 1249 91 4.18 46 3453.1 189.8 0.0232
1400 1403 91 4.43 48.7 3878.5 213.2 0.0206
1500 1499 91 4.58 50.4 4145.6 227.9 0.0193
