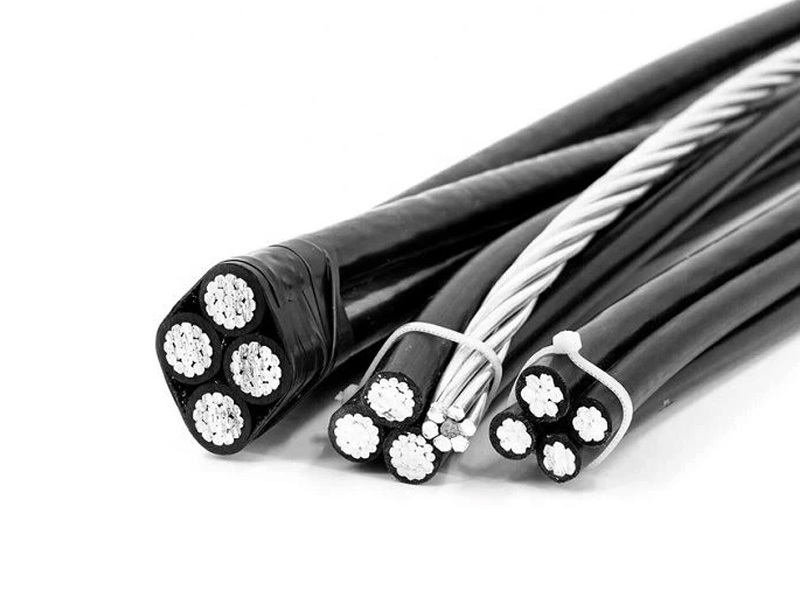

Aerial bundled cable
Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 0.6/1kV and at conductor temperatures not to exceed 90°C for cross-linked polyethylene (XLPE) insulated conductors.
key word：
Aerial bundled cable
Category：
Product Description
Application
Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 0.6/1kV and at conductor temperatures not to exceed 90°C for cross-linked polyethylene (XLPE) insulated conductors.
DESCRIPTION
The conductor consists of a phase conductor and a neutral conductor. The material of the phase conductors is Aluminum or copper and may be solid, stranded circular compacted or compressed or uncompressed conductor. The neutral conductors are stranded round circular uncompressed aluminum or copper or aluminum-alloy conductor or ACSR or ACSR/AW etc. And the insulating material is black weather or UV-resistant thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE).
Note: Neutral conductors can be insulated or non-insulated.

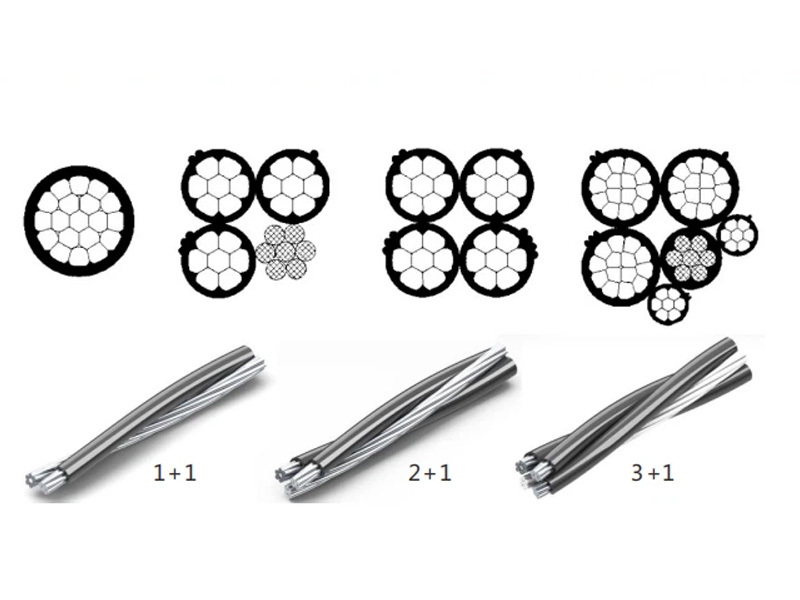

Construction
Conductor: Stranded,Circular compacted ,Circular compressed AAC or AAAC.
Insulation: Cross-linked polyethylene (XLPE),Black color,Weather and UV resistant.
STANDARDS
· ANSI/ICEA S-76-474&ASTM B230, B231, B232, B399, B498 · NFC 33-209 · GB/T 12527 · BS 6485,BS 7884
ASTM B-231 B-230 ICEA S-76-474
Duplex Service Drop - Aluminum Conductors
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No.of wires | Nominal Insulation Thickness | Size | No.of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Pekingese | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 11.1 | 92 |
| Collie | 6 | 7 | 1.14 | 6 | 7 | 1.56 | 11.5 | 94 |
| Cocker | 6 | 7 | 1.52 | 6 | 7 | 1.56 | 12.2 | 100 |
| Dachshund | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 13.4 | 140 |
| Spaniel | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 13.9 | 143 |
| Cairn | 4 | 7 | 1.52 | 4 | 7 | 1.96 | 14.6 | 150 |
| Doberman | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 16.9 | 220 |
| Airedale | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 19.6 | 280 |
| Basset | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 21.8 | 355 |
| Malemute | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 21.6 | 350 |
| AAC/XLPE+AAAC | ||||||||
| Chihuahua | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 11.4 | 98 |
| Vizsla | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 11.8 | 100 |
| Harrier | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 13.8 | 149 |
| Whippet | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 14.4 | 154 |
| Schnauzer | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 17.5 | 235 |
| Afghan | 1/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 22.5 | 378 |
| Heeler | 1/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 22.3 | 375 |
| AAC/XLPE+ACSR | ||||||||
| Setter | 6 | 1 | 1.14 | 6 | 6/1 | 1.68 | 11.4 | 109 |
| Shepherd | 6 | 7 | 1.14 | 6 | 6/1 | 1.68 | 11.8 | 112 |
| Retriever | 6 | 7 | 1.52 | 6 | 6/1 | 1.68 | 12.6 | 119 |
| Eskimo | 4 | 1 | 1.14 | 4 | 6/1 | 2.12 | 13.8 | 166 |
| Terrier | 4 | 7 | 1.14 | 4 | 6/1 | 2.12 | 14.4 | 170 |
| Yorkshire | 4 | 7 | 1.52 | 4 | 6/1 | 2.12 | 15.1 | 180 |
| Chow | 2 | 7 | 1.14 | 2 | 6/1 | 2.67 | 17.5 | 262 |
| Labrador | 1 | 19 | 1.52 | 1 | 6/1 | 3 | 20.2 | 339 |
| Bloodhound | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 22.5 | 425 |
| Bull | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 22.3 | 422 |

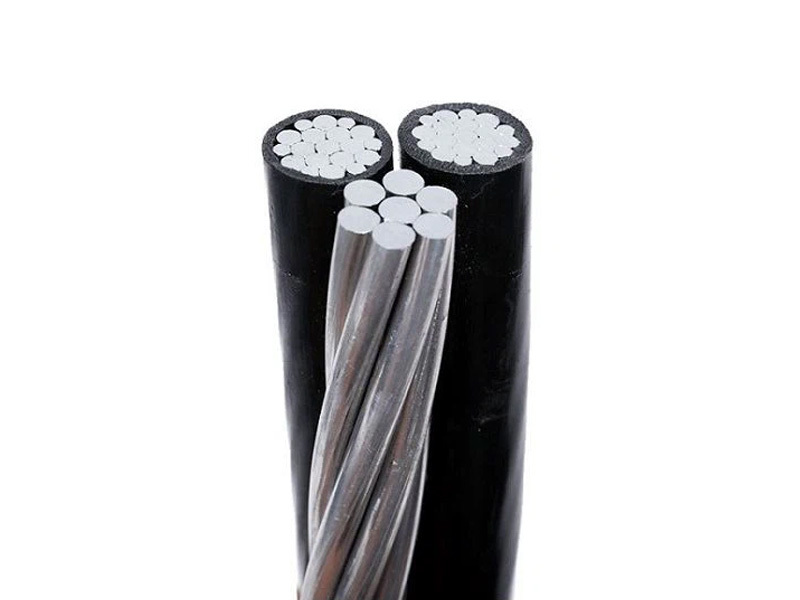

Triplex Service Drop - Aluminum Conductors
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No.of Wires | Nominal Insulation Thickness | Size | No.of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Haiotis | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 12.6 | 148 |
| Pike | 6 | 7 | 0.76 | 6 | 7 | 1.56 | 12.1 | 139 |
| Patella | 6 | 7 | 1.14 | 6 | 7 | 1.56 | 13.2 | 154 |
| Albus | 6 | 7 | 1.52 | 6 | 7 | 1.56 | 14.3 | 170 |
| Fusus | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 15 | 221 |
| Limpet | 4 | 7 | 1.14 | 6 | 7 | 1.56 | 14.9 | 208 |
| Oyster | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 15.8 | 230 |
| Argo | 4 | 7 | 1.52 | 4 | 7 | 1.96 | 16.9 | 249 |
| Clam | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 19 | 347 |
| Thia | 2 | 7 | 1.52 | 2 | 7 | 2.47 | 20.1 | 370 |
| Mussel | 2 | 7 | 1.14 | 4 | 7 | 1.96 | 17.9 | 312 |
| Pyrula | 1 | 7 | 1.52 | 1 | 7 | 2.78 | 22.4 | 465 |
| Hyas | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 22.2 | 450 |
| Snail | 1/0 | 7 | 1.52 | 2 | 7 | 2.47 | 23.2 | 517 |
| Murex | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 24.6 | 572 |
| Purpura | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 24.4 | 554 |
| Nassa | 2/0 | 7 | 1.52 | 2/0 | 7 | 3.5 | 27.1 | 706 |
| Trophon | 2/0 | 19 | 1.52 | 2/0 | 7 | 3.5 | 26.8 | 684 |
| Quahog | 3/0 | 7 | 2.03 | 3/0 | 7 | 3.93 | 31.3 | 920 |
| Ione | 3/0 | 19 | 2.03 | 3/0 | 7 | 3.93 | 31 | 892 |
| Melita | 3/0 | 19 | 1.52 | 3/0 | 19 | 2.39 | 29.7 | 845 |
| Coquina | 4/0 | 7 | 1.52 | 4/0 | 7 | 4.42 | 33 | 1082 |
| Tusk | 4/0 | 7 | 2.03 | 4/0 | 7 | 4.42 | 34.5 | 1134 |
| Apus | 4/0 | 19 | 2.03 | 4/0 | 7 | 4.42 | 34.1 | 1098 |
| Portunus | 4/0 | 19 | 2.03 | 4/0 | 19 | 2.68 | 34.2 | 1098 |
| Chiton | 266.8 | 19 | 2.03 | 266.8 | 19 | 3.01 | 38.4 | 1379 |
| Alverno | 300 | 37 | 2.03 | 4/0 | 19 | 2.68 | 37.8 | 1386 |
| Nannynose | 336.4 | 19 | 2.03 | 336.4 | 19 | 3.38 | 42.4 | 1707 |
| AAC/XLPE+AAAC | ||||||||
| Minex | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 12.8 | 154 |
| Hippa | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 13.4 | 160 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No.of Wires | NominalInsulation Thickness | Size | No.of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAAC | ||||||||
| Artemia | 4 | 1 | 1.14 | 30.58 | 7 | 1.68 | 14.4 | 205 |
| Crad | 4 | 7 | 1.14 | 30.58 | 7 | 1.68 | 15.2 | 214 |
| Prawn | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 15.3 | 231 |
| Barnacle | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 16.1 | 239 |
| Solaster | 2 | 7 | 1.14 | 48.69 | 7 | 2.12 | 18.2 | 322 |
| Pagurus | 2 | 7 | 1.52 | 48.69 | 7 | 2.12 | 19.3 | 345 |
| Shrimp | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 19.4 | 362 |
| Lobster | 2 | 7 | 1.52 | 77.47 | 7 | 2.67 | 20.5 | 385 |
| Sanderab | 1/0 | 7 | 1.52 | 77.47 | 7 | 2.67 | 23.6 | 532 |
| Echinus | 1/0 | 19 | 1.52 | 77.47 | 7 | 2.67 | 23.4 | 514 |
| Gammarus | 1/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 25.1 | 597 |
| Leda | 1/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 24.9 | 579 |
| Crayfish | 2/0 | 7 | 1.52 | 97.65 | 7 | 3 | 26 | 655 |
| Sipho | 2/0 | 19 | 1.52 | 97.65 | 7 | 3 | 25.7 | 633 |
| Abalone | 2/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 26.8 | 691 |
| Spirula | 2/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 26.5 | 669 |
| Dungenese | 2/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 27.7 | 736 |
| Cyclops | 2/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 27.4 | 714 |
| Slug | 3/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 28.6 | 809 |
| Fulgur | 3/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 28.4 | 781 |
| Balanus | 3/0 | 19 | 2.03 | 123.3 | 7 | 3.37 | 29.8 | 828 |
| Stonecrab | 3/0 | 7 | 1.52 | 195.7 | 7 | 4.25 | 30.5 | 904 |
| Flustra | 3/0 | 19 | 1.52 | 195.7 | 7 | 4.25 | 30.3 | 884 |
| Crisia | 3/0 | 19 | 2.03 | 195.7 | 7 | 4.25 | 31.7 | 931 |
| Squid | 4/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 31.6 | 1001 |
| Arca | 4/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 31.3 | 966 |
| Bugula | 4/0 | 19 | 2.03 | 155.4 | 7 | 3.78 | 32.7 | 1018 |
| Kingcrab | 4/0 | 7 | 1.52 | 246.9 | 7 | 4.77 | 33.8 | 1131 |
| Lepas | 4/0 | 19 | 1.52 | 246.9 | 7 | 4.77 | 33.4 | 1096 |
| Cassis | 4/0 | 19 | 2.03 | 246.9 | 7 | 4.77 | 34.9 | 1147 |
| Cyphoma | 4/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 30.8 | 957 |
| Mitre | 4/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 30.4 | 921 |
| Argonaut | 336.4 | 19 | 2.03 | 246.9 | 7 | 4.77 | 40.5 | 1579 |
| Nautilis | 336.4 | 19 | 2.03 | 394.5 | 19 | 3.66 | 43.4 | 1787 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No.of Wires | NominalInsulation Thickness | Size | No.of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+ACSR | ||||||||
| Paludina | 6 | 1 | 1.14 | 6 | 6/1 | 1.68 | 12.8 | 165 |
| Voluta | 6 | 7 | 1.14 | 6 | 6/1 | 1.68 | 13.4 | 171 |
| Bolma | 6 | 7 | 1.52 | 6 | 6/1 | 1.68 | 14.5 | 188 |
| Scallop | 4 | 1 | 1.14 | 6 | 6/1 | 1.68 | 14.4 | 217 |
| Strombus | 4 | 7 | 1.14 | 6 | 6/1 | 1.68 | 15.1 | 225 |
| Carnea | 4 | 7 | 1.52 | 6 | 6/1 | 1.68 | 16.2 | 244 |
| Whelk | 4 | 1 | 1.14 | 4 | 6/1 | 2.12 | 15.3 | 249 |
| Periwinkle | 4 | 7 | 1.14 | 4 | 6/1 | 2.12 | 16.1 | 257 |
| Calma | 4 | 7 | 1.52 | 4 | 6/1 | 2.12 | 17.2 | 277 |
| Cockle | 2 | 7 | 1.14 | 4 | 6/1 | 2.12 | 18.2 | 340 |
| Gebia | 2 | 7 | 1.52 | 4 | 6/1 | 2.12 | 19.3 | 363 |
| Conch | 2 | 7 | 1.14 | 2 | 6/1 | 2.67 | 19.4 | 391 |
| Uca | 2 | 7 | 1.52 | 2 | 6/1 | 2.67 | 20.5 | 414 |
| Vermeths | 1 | 7 | 1.52 | 1 | 6/1 | 3 | 22.9 | 520 |
| Atya | 1 | 19 | 1.52 | 1 | 6/1 | 3 | 22.6 | 506 |
| Janthina | 1/0 | 7 | 1.52 | 2 | 6/1 | 2.67 | 23.6 | 561 |
| Ranella | 1/0 | 19 | 1.52 | 2 | 6/1 | 2.67 | 23.4 | 543 |
| Neritina | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 25.1 | 642 |
| Cenia | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 24.9 | 624 |
| Cavolinia | 2/0 | 7 | 1.52 | 1 | 6/1 | 3 | 26 | 691 |
| Clio | 2/0 | 19 | 1.52 | 1 | 6/1 | 3 | 25.7 | 669 |
| Runcina | 2/0 | 7 | 1.52 | 2/0 | 6/1 | 3.78 | 27.7 | 794 |
| Triton | 2/0 | 19 | 1.52 | 2/0 | 6/1 | 3.78 | 27.4 | 772 |
| Sanddollar | 3/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 28.6 | 854 |
| Aega | 3/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 28.4 | 827 |
| Pisa | 3/0 | 19 | 2.03 | 1/0 | 6/1 | 3.37 | 29.8 | 874 |
| Cherrystone | 3/0 | 7 | 1.52 | 3/0 | 6/1 | 4.25 | 30.5 | 983 |
| Mursia | 3/0 | 19 | 1.52 | 3/0 | 6/1 | 4.25 | 30.3 | 956 |
| Mysis | 3/0 | 19 | 2.03 | 3/0 | 6/1 | 4.25 | 31.7 | 1003 |
| Cuttlefish | 4/0 | 7 | 1.52 | 2/0 | 6/1 | 3.78 | 31.7 | 1059 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No.of Wires | NominalInsulation Thickness | Size | No.of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+ACSR | ||||||||
| Cerapus | 4/0 | 19 | 1.52 | 2/0 | 6/1 | 3.78 | 31.3 | 1024 |
| Nepatus | 4/0 | 19 | 2.03 | 2/0 | 6/1 | 3.78 | 32.7 | 1075 |
| Razor | 4/0 | 7 | 1.52 | 4/0 | 6/1 | 4.77 | 33.8 | 1222 |
| Zuzara | 4/0 | 19 | 1.52 | 4/0 | 6/1 | 4.77 | 33.4 | 1187 |
| Alima | 4/0 | 19 | 2.03 | 4/0 | 6/1 | 4.77 | 34.9 | 1238 |
| Callista | 266.8 | 19 | 2.03 | 3/0 | 6/1 | 4.25 | 36.7 | 1350 |
| Dosinia | 266.8 | 19 | 2.03 | 266.8 | 18/1 | 3.09 | 38.7 | 1438 |
| Cowry | 336.4 | 19 | 2.03 | 4/0 | 6/1 | 4.77 | 40.5 | 1670 |
| Limpet | 336.4 | 19 | 2.03 | 336.4 | 18/1 | 3.47 | 42.7 | 1782 |
Quadruplex Service Drop - Aluminum Conductors
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No.of Wires | Nominal Insulation Thickness | Size | No.of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Quarter | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 14.4 | 203 |
| Clydesdate | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 17.1 | 302 |
| Pinto | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 18.1 | 315 |
| Mustang | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 21.7 | 474 |
| Shire | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 25.4 | 616 |
| Libyan | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 28.2 | 784 |
| Criollo | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 27.9 | 757 |
| Orloff | 2/0 | 7 | 1.52 | 2/0 | 7 | 3.5 | 30.9 | 965 |
| Percheron | 2/0 | 19 | 1.52 | 2/0 | 7 | 3.5 | 30.6 | 931 |
| Mongolian | 3/0 | 7 | 1.52 | 3/0 | 7 | 3.93 | 34.1 | 1190 |
| Hanoverian | 3/0 | 19 | 1.52 | 3/0 | 19 | 2.39 | 33.8 | 1148 |
| Singlefoot | 4/0 | 7 | 1.52 | 4/0 | 7 | 4.42 | 37.6 | 1474 |
| Oldenburg | 4/0 | 19 | 1.52 | 4/0 | 19 | 2.68 | 37.2 | 1421 |
| Lippizaner | 336.4 | 19 | 2.03 | 336.4 | 19 | 3.38 | 48.3 | 2322 |
| AAC/XLPE+AAAC | ||||||||
| Bay | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 14.7 | 209 |
| French-Coach | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 15.4 | 218 |
| German-Coach | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 17.4 | 312 |
| Arabian | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 18.4 | 324 |
| Belgian | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 22 | 489 |
| Viatka | 1/0 | 7 | 1.52 | 77.47 | 7 | 2.67 | 27.4 | 743 |
| Thoroughbred | 2/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 31.1 | 962 |
| Celtic | 2/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 30.7 | 950 |
| Norman | 2/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 30.3 | 917 |
| Donkey | 3/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 33 | 1126 |
| Burro | 3/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 32.7 | 1085 |
| Dobbin | 3/0 | 7 | 1.52 | 195.7 | 7 | 4.25 | 34.6 | 1229 |
| Trotter | 3/0 | 19 | 1.52 | 195.7 | 7 | 4.25 | 34.3 | 1188 |
| Roan | 4/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 35.7 | 1348 |
| Gotland | 4/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 35.2 | 1295 |
| Bali | 4/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 36.5 | 1393 |
| Skyros | 4/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 36 | 1340 |
| Pony | 4/0 | 7 | 1.52 | 246.9 | 7 | 4.77 | 38.3 | 1522 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No.of Wires | NominalInsulation Thickness | Size | No.of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAAC | ||||||||
| Walking | 4/0 | 19 | 1.52 | 246.9 | 7 | 4.77 | 37.8 | 1470 |
| Exmoor | 336.4 | 19 | 2.03 | 246.9 | 19 | 2.89 | 46.8 | 2193 |
| Breton | 336.4 | 19 | 2.03 | 394.5 | 19 | 3.66 | 49.1 | 2402 |
| AAC/XLPE+ACSR | ||||||||
| Morochuca | 6 | 1 | 1.14 | 6 | 6/1 | 1.68 | 14.7 | 221 |
| Chola | 6 | 7 | 1.14 | 6 | 6/1 | 1.68 | 15.4 | 229 |
| Morgan | 4 | 1 | 1.14 | 4 | 6/1 | 2.12 | 17.4 | 330 |
| Hackney | 4 | 7 | 1.14 | 4 | 6/1 | 2.12 | 18.4 | 342 |
| Palomino | 2 | 7 | 1.14 | 2 | 6/1 | 2.67 | 22 | 518 |
| Albino | 1 | 19 | 1.52 | 1 | 6/1 | 3 | 25.8 | 672 |
| Standardbred | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 3.37 | 28.6 | 854 |
| Costena | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 3.37 | 28.3 | 827 |
| Chicoteagues | 2/0 | 7 | 1.52 | 2/0 | 6/1 | 3.78 | 31.5 | 1053 |
| Grullo | 2/0 | 19 | 1.52 | 2/0 | 6/1 | 3.78 | 31.1 | 1022 |
| Mare | 3/0 | 7 | 1.52 | 3/0 | 6/1 | 4.25 | 34.6 | 1301 |
| Suffolk | 3/0 | 19 | 1.52 | 3/0 | 6/1 | 4.25 | 34.3 | 1260 |
| Stallion | 4/0 | 7 | 1.52 | 4/0 | 6/1 | 4.77 | 38.3 | 1614 |
| Appaloosa | 4/0 | 19 | 1.52 | 4/0 | 6/1 | 4.77 | 37.8 | 1561 |
| Gelding | 336.4 | 19 | 2.03 | 4/0 | 6/1 | 4.77 | 46.7 | 2285 |
| Bronco | 336.4 | 19 | 2.03 | 336.4 | 18/1 | 3.47 | 48.6 | 2396 |
NFC 33-209
| Designation | Average Thickness of Insulation (prescribed value) | Core | |||||||
| Nature | Nominal Section | No. of Wires | Max. DC Resistance at 20 0C | Conductor | Breaking Force | Outside Diameter | |||
| Diameter | |||||||||
| (mm2) | No. | （Ω/km） | Min. (mm) | Max. (mm) | Min. (daN) | (mm) | Min. (mm) | Max. (mm) | |
| Phase or neutral or public lighting | 16 | 7 | 1.91 | 4.6 | 5.1 | 190 | 1.2 | 7 | 7.8 |
| 25 | 7 | 1.2 | 5.8 | 6.3 | 300 | 1.4 | 8.6 | 9.4 | |
| 35 | 7 | 0.868 | 6.8 | 7.3 | -- | 1.6 | 10 | 10.9 | |
| 50 | 7 | 0.641 | 7.9 | 8.4 | -- | 1.6 | 11.1 | 12 | |
| 70 | 12 | 0.443 | 9.7 | 10.2 | -- | 1.8 | 13.3 | 14.2 | |
| 95 | 19 | 0.32 | 11 | 12 | -- | 1.8 | 14.6 | 15.7 | |
| 120 | 19 | 0.253 | 12 | 13.1 | -- | 1.8 | 15.6 | 16.7 | |
| 150 | 19 | 0.206 | 13.9 | 15 | -- | 1.8 | 17.3 | 18.6 | |
| Neutral | 54.6 | 7 | 0.63 | 9.2 | 9.6 | 1660 | 1.6 | 12.3 | 13 |
| 70 | 7 | 0.5 | 10 | 10.2 | 2050 | 1.6 | 12.9 | 13.6 | |
| 95 | 19 | 0.343 | 12.2 | 12.9 | 2750 | 1.6 | 15.3 | 16.3 | |
| Pilot | 1.5 | 1 | 12.1 | -- | 1.5 | -- | 1.2 | 3.7 | 4.2 |
AAC/XLPE
| No. of Cores and Section | No. of Wires | Nominal Insulation Thickness | Approx. Diameter | Max. DC. Resistance at 20℃ | Approx. Weight |
| of Cable | |||||
| mm2 | No. | mm | mm | Ω/km | kg/km |
| 2x16 | 7 | 1.2 | 14.4 | 1.91 | 131 |
| 2x25 | 7 | 1.4 | 17.6 | 1.2 | 200 |
| 2x35 | 7 | 1.6 | 20.4 | 0.868 | 273 |
| 2x50 | 7 | 1.6 | 22.6 | 0.641 | 350 |
| 2x70 | 12 | 1.8 | 26.8 | 0.443 | 495 |
| 2x95 | 19 | 1.8 | 30.4 | 0.32 | 656 |
| 2x120 | 19 | 1.8 | 32.8 | 0.253 | 799 |
| 4x16 | 7 | 1.2 | 17.4 | 1.91 | 262 |
| 4x25 | 7 | 1.4 | 21.3 | 1.2 | 399 |
| 4x35 | 7 | 1.6 | 24.7 | 0.868 | 547 |
| 4x50 | 7 | 1.6 | 27.3 | 0.641 | 699 |
| 4x70 | 12 | 1.8 | 32.4 | 0.443 | 990 |
| 4x95 | 19 | 1.8 | 36.8 | 0.32 | 1311 |
| 4x120 | 19 | 1.8 | 39.7 | 0.253 | 1597 |
AAC/XLPE+AAAC/XLPE
| No. of Cores and Section | No. of Wires | Nominal Insulation Thickness | Approx. Diameter | Max. DC. Resistance at 20℃ | Approx. Weight | |||
| Phase | Neutral | Phase | Neutral | of Cable | Phase | Neutral | ||
| mm2 | No. | No. | mm | mm | mm | Ω/km | Ω/km | kg/km |
| 1x25+1x54.6 | 7 | 7 | 1.4 | 1.6 | 21.3 | 1.2 | 0.63 | 309 |
| 1x35+1x54.6 | 7 | 7 | 1.6 | 1.6 | 22.7 | 0.868 | 0.63 | 345 |
| 1x50+1x54.6 | 7 | 7 | 1.6 | 1.6 | 23.8 | 0.641 | 0.63 | 384 |
| 1x70+1x54.6 | 12 | 7 | 1.8 | 1.6 | 25.9 | 0.443 | 0.63 | 456 |
| 1x95+1x54.6 | 19 | 7 | 1.8 | 1.6 | 27.7 | 0.32 | 0.63 | 537 |
| 1x70+1x70 | 12 | 7 | 1.8 | 1.6 | 26.7 | 0.443 | 0.5 | 491 |
| 1x95+1x70 | 19 | 7 | 1.8 | 1.6 | 28.5 | 0.32 | 0.5 | 571 |
| 1x120+1x70 | 19 | 7 | 1.8 | 1.6 | 29.7 | 0.253 | 0.5 | 643 |
| 1x120+1x95 | 19 | 19 | 1.8 | 1.6 | 31.9 | 0.253 | 0.343 | 737 |
| 1x150+1x95 | 19 | 19 | 1.8 | 1.6 | 33.6 | 0.206 | 0.343 | 819 |
| 3x25+1x54.6 | 7 | 7 | 1.4 | 1.6 | 23.5 | 1.2 | 0.63 | 508 |
| 3x35+1x54.6 | 7 | 7 | 1.6 | 1.6 | 26.1 | 0.868 | 0.63 | 619 |
| 3x50+1x54.6 | 7 | 7 | 1.6 | 1.6 | 28.1 | 0.641 | 0.63 | 733 |
| 3x70+1x54.6 | 12 | 7 | 1.8 | 1.6 | 31.9 | 0.443 | 0.63 | 951 |
| 3x95+1x54.6 | 19 | 7 | 1.8 | 1.6 | 35.2 | 0.32 | 0.63 | 1192 |
| 3x70+1x70 | 12 | 7 | 1.8 | 1.6 | 32.4 | 0.443 | 0.5 | 986 |
| 3x95+1x70 | 19 | 7 | 1.8 | 1.6 | 35.6 | 0.32 | 0.5 | 1227 |
| 3x120+1x70 | 19 | 7 | 1.8 | 1.6 | 37.8 | 0.253 | 0.5 | 1441 |
| 3x120+1x95 | 19 | 19 | 1.8 | 1.6 | 39.1 | 0.253 | 0.343 | 1536 |
| 3x150+1x95 | 19 | 19 | 1.8 | 1.6 | 42.2 | 0.206 | 0.343 | 1779 |
AAC/XLPE+AAAC/XLPE+AAC/XLPE
| No. of Cores and Section | No. of Wires | Nominal Insulation Thickness | Approx. Diameter | Max. DC. Resistance at 20℃ | ||||||
| Phase | Neutral | Street Light | Phase | Neutral | Street Light | of Cable | Phase | Neutral | Public lighting | |
| mm2 | No. | No. | No. | mm | mm | mm | mm | Ω/km | Ω/km | Ω/km |
| 3x25+1x54.6+1x16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.2 | 0.63 | 1.91 |
| 3x35+1x54.6+1x16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 |
| 3x50+1x54.6+1x16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 |
| 3x70+1x54.6+1x16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 |
| 3x70+1x54.6+1x25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.2 |
| 3x70+1x70+1x16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.5 | 1.91 |
| 3x95+1x70+1x16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.32 | 0.5 | 1.91 |
| 3x120+1x70+1x16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.5 | 1.91 |
| 3x120+1x95+1x16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 |
| 3x150+1x95+1x16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 |
| 3x25+1x54.6+2x16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.2 | 0.63 | 1.91 |
| 3x35+1x54.6+2x16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 |
| 3x50+1x54.6+2x16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 |
| 3x70+1x54.6+2x16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 |
| 3x70+1x54.6+2x25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.2 |
| 3x70+1x70+2x16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.5 | 1.91 |
| 3x95+1x70+2x16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.32 | 0.5 | 1.91 |
| 3x120+1x70+2x16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.5 | 1.91 |
| 3x120+1x95+2x16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 |
| 3x150+1x95+2x16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 |
BS 6485,BS 7884
AAC/XLPE
| Number of Cores and Size | Min. No. of Wires | Nominal Insulation Thickness | Approx. Diameter of Cable | Max. DC. Resistance at 20℃ | Breaking Load | Approx .weight |
| mm2 | No. | mm | mm | Ω/km | kN | kg/km |
| 1x10 | 6 | 1 | 5.8 | 3.08 | 1.65 | 41 |
| 1x16 | 6 | 1.2 | 7.2 | 1.91 | 2.517 | 65 |
| 1x25 | 6 | 1.2 | 8.4 | 1.2 | 3.762 | 94 |
| 1x35 | 6 | 1.4 | 9.8 | 0.868 | 5.177 | 129 |
| 1x50 | 6 | 1.4 | 10.9 | 0.641 | 7.011 | 166 |
| 1x70 | 12 | 1.4 | 12.6 | 0.443 | 10.354 | 229 |
| 1x95 | 15 | 1.6 | 14.8 | 0.32 | 13.727 | 315 |
| 1x120 | 15 | 1.6 | 16 | 0.253 | 17.339 | 386 |
| 1x150 | 15 | 1.8 | 18.1 | 0.206 | 21.033 | 476 |
| 1x185 | 30 | 2 | 20.1 | 0.164 | 26.732 | 594 |
| 1x240 | 30 | 2.2 | 22.8 | 0.125 | 34.679 | 777 |
| 1x300 | 30 | 2.2 | 24.9 | 0.1 | 43.349 | 955 |
| 1x400 | 53 | 2.2 | 27.6 | 0.0778 | 55.707 | 1205 |
| 2x10 | 6 | 1 | 11.6 | 3.08 | 1.65 | 84 |
| 2x16 | 6 | 1.2 | 14.4 | 1.91 | 2.517 | 131 |
| 2x25 | 6 | 1.2 | 16.8 | 1.2 | 3.762 | 189 |
| 2x35 | 6 | 1.4 | 19.6 | 0.868 | 5.177 | 261 |
| 2x50 | 6 | 1.4 | 21.8 | 0.641 | 7.011 | 336 |
| 2x70 | 12 | 1.4 | 25.2 | 0.443 | 10.354 | 463 |
| 2x95 | 15 | 1.6 | 29.6 | 0.32 | 13.727 | 637 |
| 2x120 | 15 | 1.6 | 32 | 0.253 | 17.339 | 779 |
| 4x10 | 6 | 1 | 14 | 3.08 | 1.65 | 167 |
| 4x16 | 6 | 1.2 | 17.4 | 1.91 | 2.517 | 262 |
| 4x25 | 6 | 1.2 | 20.3 | 1.2 | 3.762 | 378 |
| 4x35 | 6 | 1.4 | 23.7 | 0.868 | 5.177 | 522 |
| 4x50 | 6 | 1.4 | 26.4 | 0.641 | 7.011 | 672 |
| 4x70 | 12 | 1.4 | 30.5 | 0.443 | 10.354 | 926 |
| 4x95 | 15 | 1.6 | 35.8 | 0.32 | 13.727 | 1274 |
| 4x120 | 15 | 1.6 | 38.7 | 0.253 | 17.339 | 1558 |
GBT 12527
| Nominal Size | Min. No. of Wires | Approx.Diameter of Conductor | Nominal Thickness of Insulation | Max. Diameter of Cable | Max. DC Resistance at 20°C | Breaking Load | |
| Hard copper | Annealedcopper | Hard copper | |||||
| mm2 | No. | mm | mm | mm | Ω/km | Ω/km | N |
| 10 | 6 | 3.8 | 1 | 6.5 | 1.906 | 1.83 | 3471 |
| 16 | 6 | 4.8 | 1.2 | 8 | 1.198 | 1.15 | 5486 |
| 25 | 6 | 6 | 1.2 | 9.4 | 0.749 | 0.727 | 8465 |
| 35 | 6 | 7 | 1.4 | 11 | 0.54 | 0.524 | 11731 |
| 50 | 6 | 8.4 | 1.4 | 12.3 | 0.399 | 0.387 | 16052 |
| 70 | 12 | 10 | 1.4 | 14.1 | 0.276 | 0.268 | 23461 |
| 95 | 15 | 11.6 | 1.6 | 16.5 | 0.199 | 0.193 | 31759 |
| 120 | 18 | 13 | 1.6 | 18.1 | 0.158 | 0.153 | 39911 |
| 150 | 18 | 14.6 | 1.8 | 20.2 | 0.128 | 0.124 | 49505 |
| 185 | 30 | 16.2 | 2 | 22.5 | 0.1021 | 0.0991 | 61846 |
| 240 | 34 | 18.4 | 2.2 | 25.6 | 0.0777 | 0.0754 | 79823 |
| Nominal Size | Min. No. of Wires | Approx.Diameter of Conductor | Nominal Thickness of Insulation | Max. Diameter of Cable | Max. DC Resistance at 20°C | Breaking Load | ||
| AAC | AAAC | AAC | AAAC | |||||
| mm2 | No. | mm | mm | mm | Ω/km | Ω/km | N | N |
| 10 | 6 | 3.8 | 1 | 6.5 | 3.08 | 3.574 | 1650 | 2514 |
| 16 | 6 | 4.8 | 1.2 | 8 | 1.91 | 2.217 | 2517 | 4022 |
| 25 | 6 | 6 | 1.2 | 9.4 | 1.2 | 1.393 | 3762 | 6284 |
| 35 | 6 | 7 | 1.4 | 11 | 0.868 | 1.007 | 5177 | 8800 |
| 50 | 6 | 8.4 | 1.4 | 12.3 | 0.641 | 0.744 | 7011 | 12569 |
| 70 | 12 | 10 | 1.4 | 14.1 | 0.443 | 0.514 | 10354 | 17596 |
| 95 | 15 | 11.6 | 1.6 | 16.5 | 0.32 | 0.371 | 13727 | 23880 |
| 120 | 15 | 13 | 1.6 | 18.1 | 0.253 | 0.294 | 17339 | 30164 |
| 150 | 15 | 14.6 | 1.8 | 20.2 | 0.206 | 0.239 | 21033 | 37706 |
| 185 | 30 | 16.2 | 2 | 22.5 | 0.164 | 0.19 | 26732 | 46503 |
| 240 | 30 | 18.4 | 2.2 | 25.6 | 0.125 | 0.145 | 34679 | 60329 |
| 300 | 30 | 20.8 | 2.2 | 27.2 | 0.1 | 0.116 | 43349 | 75411 |
| 400 | 53 | 23.2 | 2.2 | 30.7 | 0.0778 | 0.0904 | 55707 | 100548 |
Message to us
Our philosophy: transmit the light, connect the world, realize double wins, grow together.
Copyright © Henan Xunda Cable Co.,Ltd
This site has IPV6 support Powered by www.300.cn
SAF Coolest v1.3 设置面板 ITNSX-ZGIV-RWXAE-DDE
违禁词： 第一，最，一流，领先，独一无二，王者，龙头，领导者，极致，
无数据提示
Sorry, there is no content in the current column!
