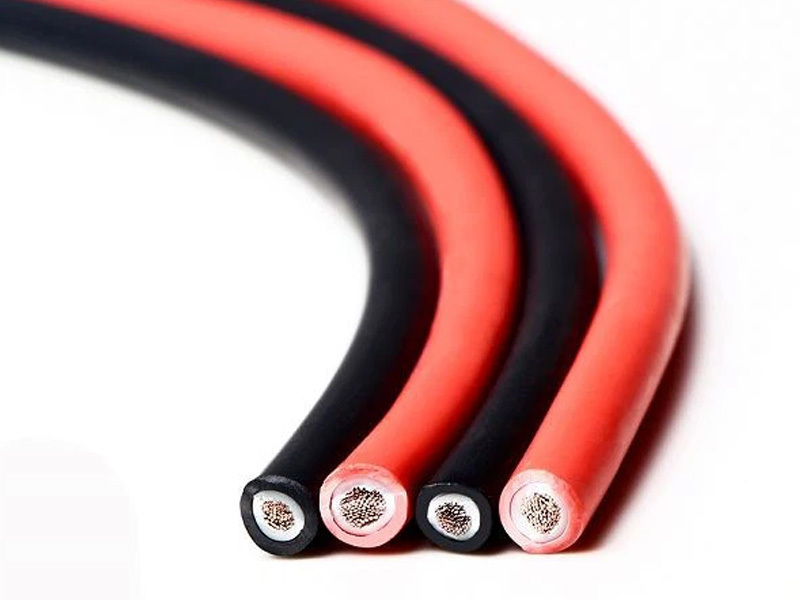

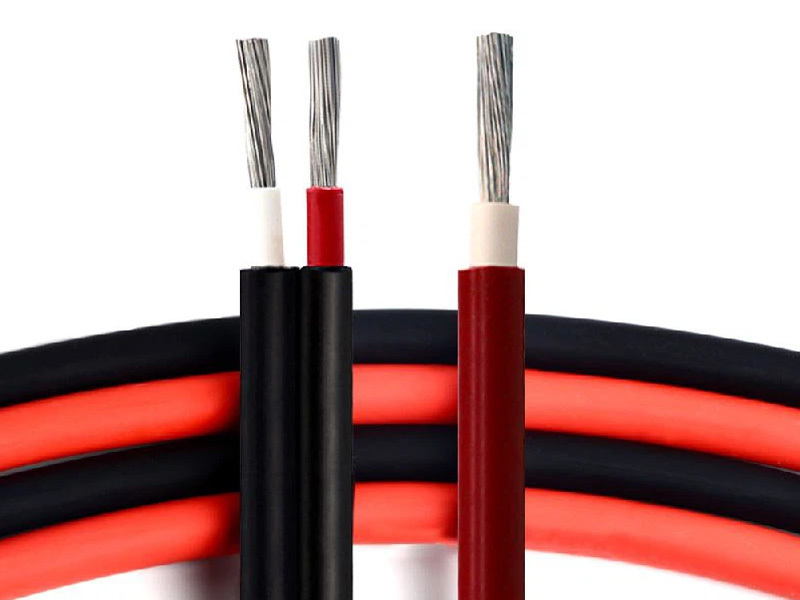

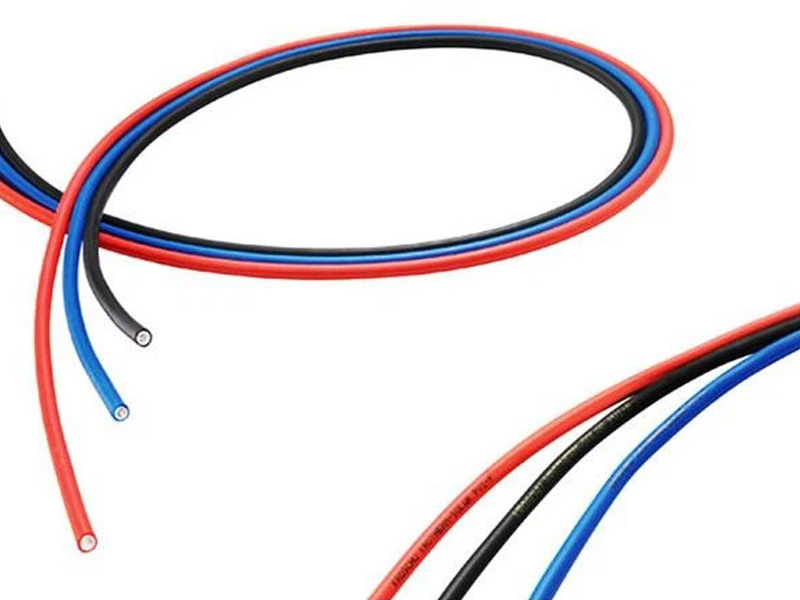

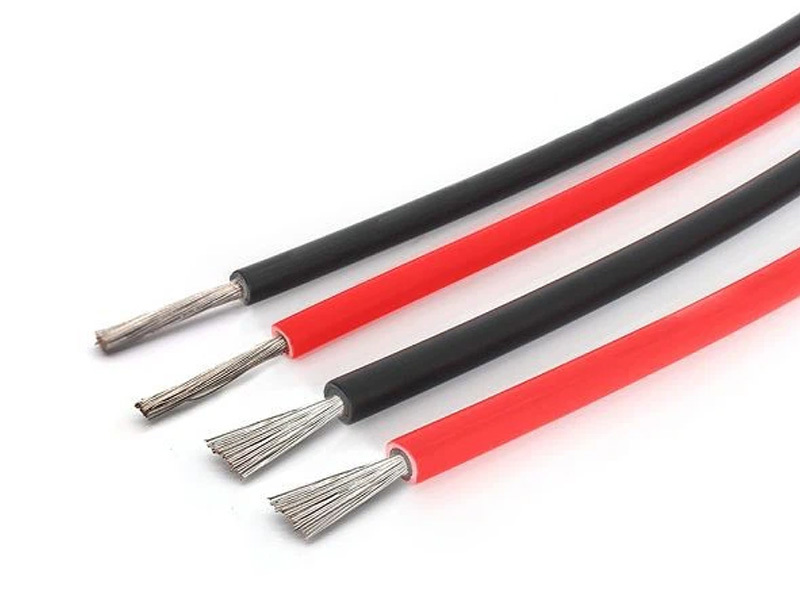

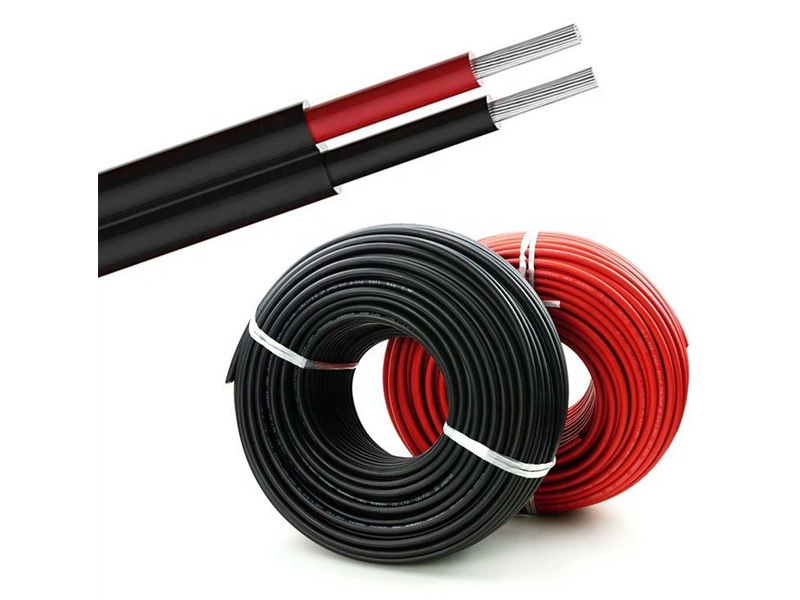

Solar Cable PV1-F

Application

Solar cables PV1-F acc. to 2 PfG 1169/08, are intended for use in Photovoltaic Power Supply Systems at nominal voltage rate up to 1,8kV D.C.

They are suitable for applications indoor and/or outdoor, in industrial and agriculture fields, in/at equipment with protective insulation (Protecting Class II), in explosion hazard areas. They may be installed fixed, freely suspended or free movable, in cable trays, conduits, on and in walls.

Construction

Conductor: Flexible tinned copper class 5 (K) as per IEC 60228

Insulation: Halogen - free cross - linked LS0H - XL compound, black

Outer sheath: Halogen - free cross - linked LS0H - XL compound, black or red

Characteristics

Rated voltage

D.C.: 1,0 kV

A.C.: 0,6/1,0 kV

Max. permissible operating voltage:

A.C.: 1,2 kV

D.C.: 1,8 kV

Test voltage

A.C.: 6,5 kV / D.C.: 15 kV (5 min)

Minimum bending radius

Fixed installation approx. 4 x outer diameters

Flexing 10 x cable diameter

Temperature range

Operating temperature: -40°C to +90°C

Max. conductor temperature: 120°C

2 PfG 1169-08

No. of Cores and Nominal Cross Section	Max.	Min.	Min. Sheath Thickness	Approx.	Max. D.C. Resistance of Conductor
	Diameter of	Insulation Thickness		Weight	at 20℃
	Copper Wires
No.× mm²	mm	mm	mm	kg/km	Ω/km
1×1.5	0.26	0.5	0.5	32	13.7
1×2.5	0.26	0.5	0.5	43	8.21
1×4	0.31	0.5	0.5	56	5.09
1×6	0.31	0.5	0.5	79	3.39
1×10	0.41	0.5	0.5	128	1.95
1×16	0.41	0.5	0.5	186	1.24
1×25	0.41	0.5	0.5	284	0.795
1×35	0.41	0.5	0.5	384	0.565

Current rating conversion factors for different ambient temperatures
Ambient Temperature,℃	Up to 60	70	80	90	100	110
Conversion Factor	1	0.91	0.82	0.71	0.58	0.41

Nominal cross section	Current carrying capacity
	Single cable, in air	Single cable on	Two loaded cables touching, on a surface
	Single cable, in air	a surface	Two loaded cables touching, on a surface
mm²	A	A	A
1.5	30	29	24
2.5	41	39	33
4	55	52	44
6	70	67	57
10	98	93	79
16	132	125	107
25	176	167	142
35	218	207	176
Ambient temperature: 60℃，Maximum conductor temperature: 120℃.
